How SCR Improves Control in Chemical and Pharmaceutical Heating

Published: December 31, 2025

In chemical and pharmaceutical processes, heating is involved at almost every stage of production. From raw material preparation to reaction, crystallization, evaporation, and drying, temperature directly influences not only process efficiency but also reaction pathways, product purity, and batch-to-batch consistency. As a result, temperature control is not simply an operational parameter—it is a critical part of process quality.

In this context, the key challenge is not whether sufficient heat can be supplied, but how accurately and reliably that heat can be delivered throughout the entire process cycle. This raises an important question for engineers: can traditional burner-based heating systems alone meet the increasingly stringent temperature control requirements of chemical and pharmaceutical applications?

Traditional burners in chemical and pharmaceutical plants

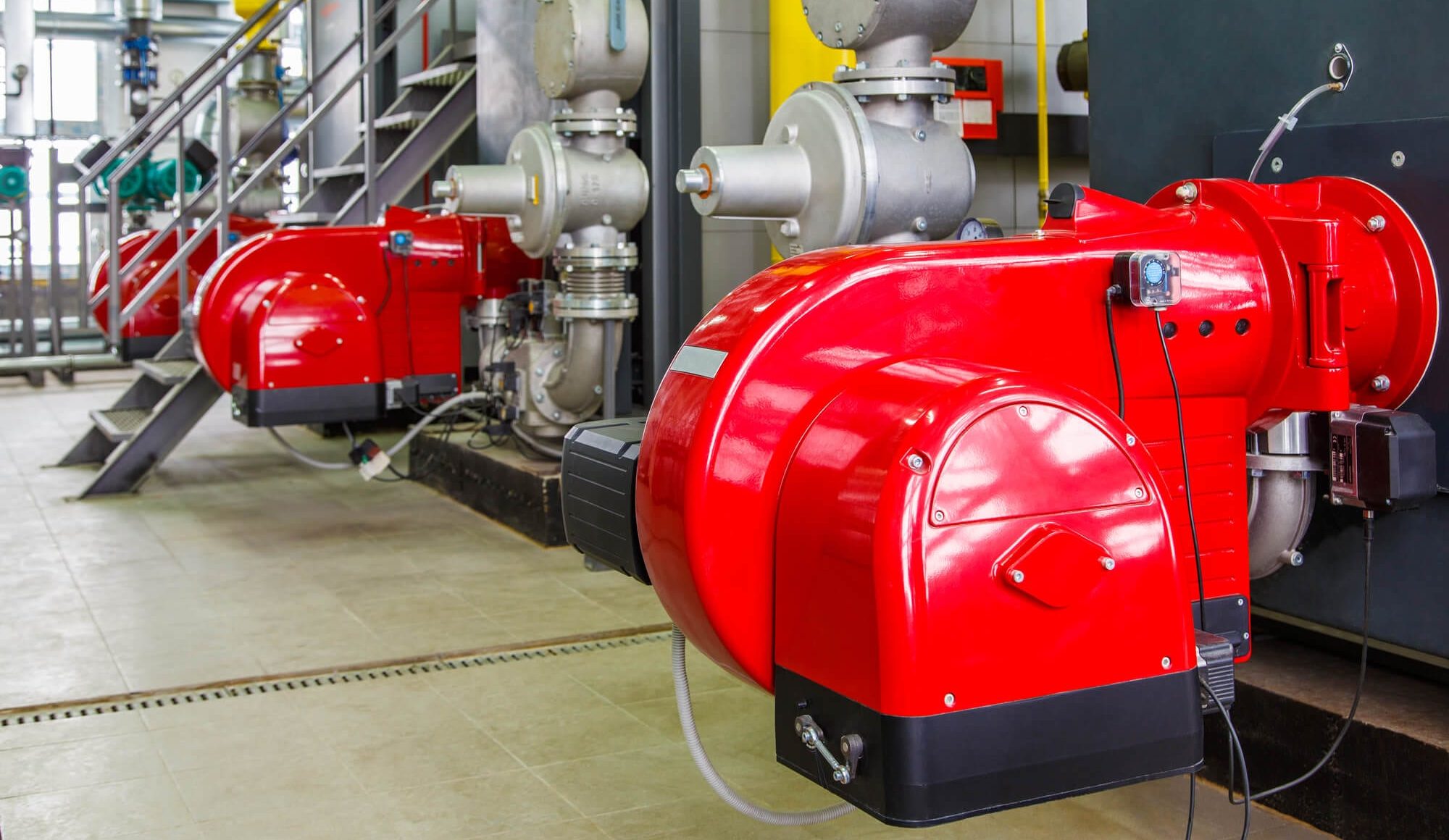

Burners combined with steam or thermal oil systems have long been a cornerstone of industrial heating. They provide centralized heat generation and are well suited for large thermal duties, continuous operation, and facilities with established distribution networks. In many chemical plants, such systems serve as the primary and indispensable heat source.

From an engineering perspective, these systems are robust, scalable, and proven over decades of operation. For applications requiring large amounts of thermal energy delivered over long periods, burner-based systems remain a practical and often necessary solution.

The real challenge: heating capacity versus heat regulation

Industrial heating systems are typically designed for the most demanding conditions—cold starts, rapid warm-up, and maximum process load. However, once the target process temperature is reached, the situation changes significantly.

In chemical and pharmaceutical processes, the temperature maintenance phase often accounts for most of the operating time. During this phase, the actual thermal demand is much lower than the design capacity. In many cases, only a fraction of the installed power—often as little as one tenth, one third, or one fifth—is required to maintain stable conditions.

At this stage, the system no longer benefits from additional heating capacity. Instead, what becomes critical is the ability to finely regulate heat input in response to small, continuous changes in process conditions.

Inherent limitations of burners in fine temperature control

The limitations of burner-based systems in precision control are not primarily due to equipment quality, but to the physical structure of the heating chain itself. Heat generated by combustion must pass through multiple stages: the heating medium, distribution piping, heat exchangers, and finally the process material.

This long thermal path introduces significant inertia and delay. Even with modulating burners and advanced control systems, achieving fast, continuous, and very small power adjustments remains challenging. As a result, temperature regulation during sensitive process phases may exhibit lag or oscillation.

From a control standpoint, combustion systems are highly effective at supplying heat, but they are inherently less suited for precise, real-time heat modulation.

Where SCR-based power control becomes relevant

SCR-based power control does not introduce a new heat source. Instead, it provides a means of regulating heating power closer to the process itself. By directly controlling electrical heaters, the thermal chain is significantly shortened: electrical energy is converted into heat at the point of use, with minimal intermediate stages.

This characteristic makes SCR power control particularly suitable for process segments where stability and responsiveness are critical. Typical examples include temperature holding phases in reactors, controlled crystallization, evaporation, and drying operations. In pharmaceutical environments, where reproducibility and validation are essential, this localized and responsive control offers clear advantages.

SCR and PID control in pharmaceutical applications

SCR power controllers work especially well in combination with PID temperature control. Because output power can be adjusted continuously, the control response becomes more linear and predictable. This allows the PID algorithm to operate within a narrower and more stable control range.

The practical outcome is a smoother temperature profile, reduced overshoot, and improved long-term stability. For pharmaceutical processes, this translates into better batch consistency, a more stable process window, and easier documentation and validation of thermal conditions.

A complementary approach rather than a replacement

In chemical and pharmaceutical heating systems, burners and SCR-based electric heating should not be viewed as competing solutions. They serve different roles within the same thermal strategy.

Burners are well suited for providing the required thermal capacity at a system level, while SCR power controllers excel at determining how much heat is actually delivered at each moment of the process. Together, they allow engineers to combine robust heat generation with precise, process-oriented control.

In practice, this complementary approach aligns well with modern process requirements, where efficiency, stability, and reproducibility are increasingly important.
