VFDs Optimize Motor Performance

Variable Frequency Drives (VFDs)
Optimize Motor Performance

Precision speed control for elevators, pumps, fans, conveyors & industrial machinery. Reduce energy costs by up to 60% with intelligent motor management.

Free Consultation

What is a Variable Frequency Drive (VFD)?

A Variable Frequency Drive (VFD) is a sophisticated electronic device that controls AC motor operation by dynamically adjusting both frequency and voltage output. Serving as a smart energy management solution, it optimizes motor speed to precisely match mechanical load demands, resulting in 20-60% energy savings while eliminating harsh mechanical transitions during acceleration/deceleration. Beyond energy efficiency, modern VFDs provide comprehensive motor protection and serve as crucial components in industrial automation systems.

Modern VFDs like AIGOODELE's are engineered with vector control and DSP to achieve exceptional speed regulation (±0.1% accuracy) while protecting motors from overloads, voltage fluctuations, and overheating. Engineered with premium components from industry-leading brands including TI, Onsemi, and Infineon, our drives deliver outstanding reliability and performance. These advanced features make VFDs indispensable for energy-efficient manufacturing, HVAC systems, and process automation.

Multiple Control Modes (V/F, SVC, VC)
Layer 1

Variable Torque

Ideal for fans and pumps where overload requirements are minimal. Since torque varies with speed squared (except Roots blowers), these applications benefit from V/F mode which doesn't require precise speed regulation.
Layer 1

Performance Driven

For applications needing stiff low-speed characteristics (e.g., extruders, test benches), Sensorless Vector Control (SVC) delivers enhanced torque response (±0.5% speed accuracy) without encoder feedback.
Layer 1

Constant Torque

Suitable for conveyors, mixers, and cranes with consistent torque demands but modest dynamic needs. Multi-step V/F operation provides cost-effective control for such applications.
Layer 1

High-Precision

Demanding processes like elevators and plastic film lines require full Vector Control (VC) with encoder feedback for ±0.1% speed accuracy and 200% starting torque at 0Hz.

What Our VFDs Can Offer

  • Basic Functions

  • Advanced Functions

Speed Regulation
Adjusts motor speed steplessly by controlling output frequency and voltage to meet varying load demands. Supports manual adjustment, analog signals (0-10V/4-20mA), and digital communication control.

Energy-Saving Operation
Reduces energy consumption by 20-60% in variable-load equipment (e.g., fans/pumps) through optimized speed control. Automatically matches load requirements to prevent unnecessary full-speed operation.

Soft Start/Stop
Gradually accelerates/decelerates motors to minimize mechanical stress, extending equipment lifespan. Eliminates high inrush currents during startup.

Auto Voltage Stabilization
Maintains consistent output voltage despite input fluctuations for stable motor performance.

Protection Mechanisms

▫︎ Overload protection: Prevents motor burnout by detecting abnormal currents

▫︎ Voltage protection: Handles grid fluctuations (over/under voltage) automatically

▫︎ Short-circuit protection: Triggers shutdown upon fault detection

▫︎ Overheat protection: Monitors internal temperature with alarm/shutdown functions

Multi-Speed Operation
Presets fixed frequencies (e.g., 15Hz/30Hz/50Hz) for external signal-triggered speed changes, ideal for cyclic processes.

PID Control
Integrated proportional-integral-derivative algorithm automatically adjusts motor speed to maintain stable pressure, flow, or temperature (e.g., constant-pressure water supply).

Momentary Power Loss Ride-Through
Maintains continuous operation during brief power outages by utilizing regenerative energy from the load to compensate for voltage drops.

Virtual I/O
Provides five configurable virtual digital inputs/outputs (DIDO) for basic logic control applications.

Multi-Motor Switching
Stores four independent motor parameter sets for seamless switching between different motors.

Motor Overtemperature Protection
Optional I/O expansion card (A13 analog input) supports direct PT100/PT1000 temperature sensor connection for thermal monitoring.

User Programmable Logic
Optional programming card enables secondary development with PLC programming compatibility (ABB/Siemens syntax).

Fast Current Limiting
Prevents frequent overcurrent faults by dynamically restricting current surges, ensuring stable operation.

Programmable Timer
Offers adjustable timing control with a wide range of 0.0 to 6500.0 minutes for process automation.

Multi-Protocol Bus Support
Compatible with four major industrial networks: RS-485, Profibus-DP, CANlink, and CANopen.

Multi-Encoder Compatibility
Supports diverse encoder types including differential, open-collector, UVW, resolver, and sin/cos encoders.

Advanced Debugging Software
Features parameter configuration and virtual oscilloscope functions for real-time graphical monitoring of drive status.

Typical Applications

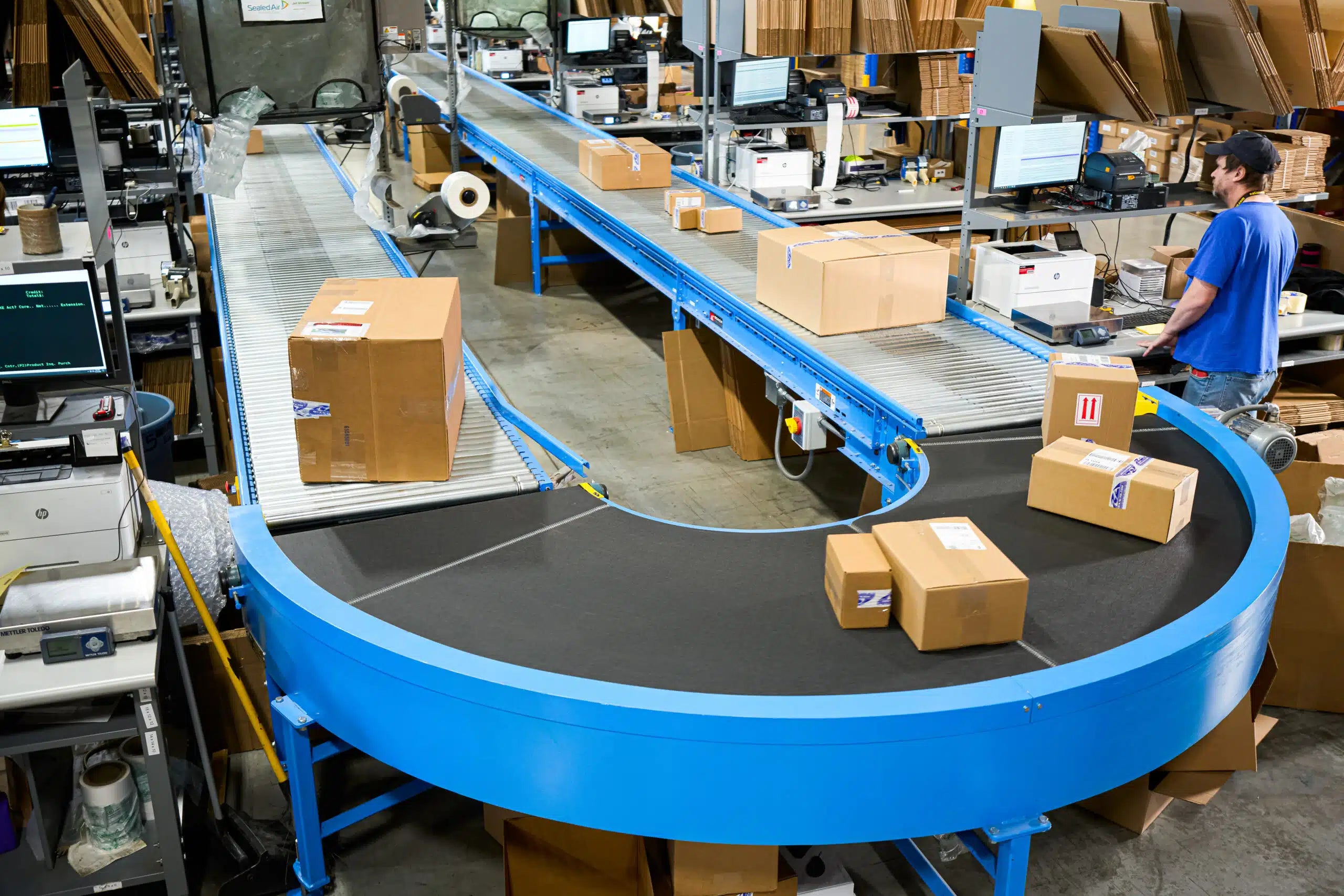

Conveyor Systems

Provides smooth acceleration/deceleration of material handling equipment while enabling variable speed operation for different production requirements.

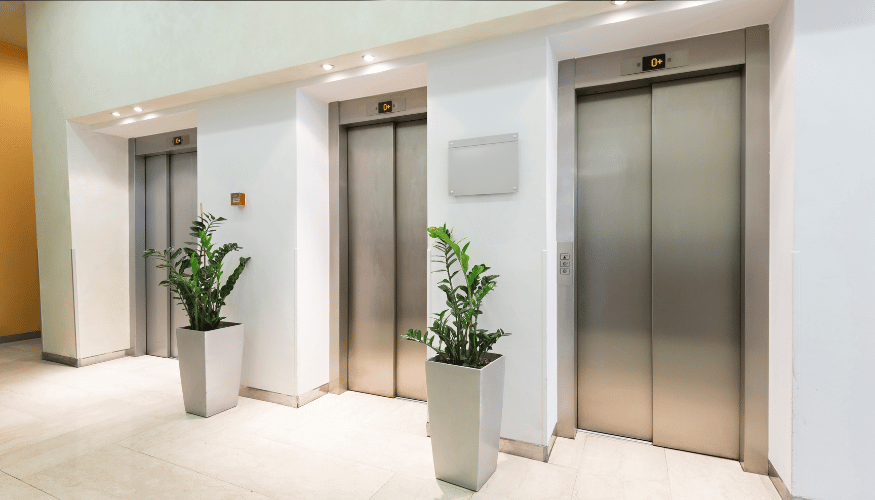

Elevator Control

Enables smooth /deceleration and precise floor-leveling control in elevator systems while significantly reducing mechanical stress on hoisting mechanisms and components.

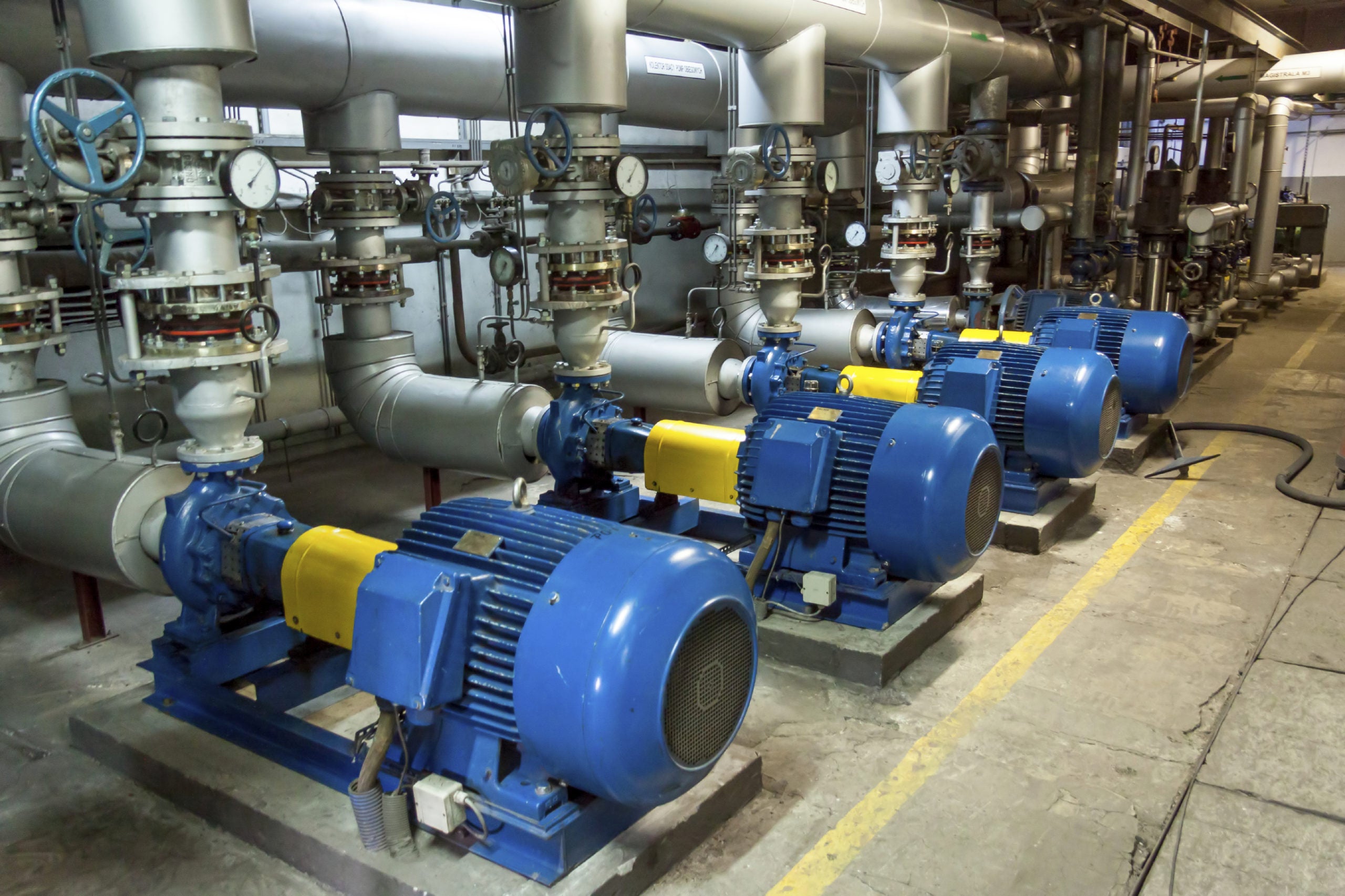

Industrial Pumps

Intelligent speed adjustment matches water flow to demand, eliminating throttling losses and achieving 20-60% energy savings in water treatment plants.

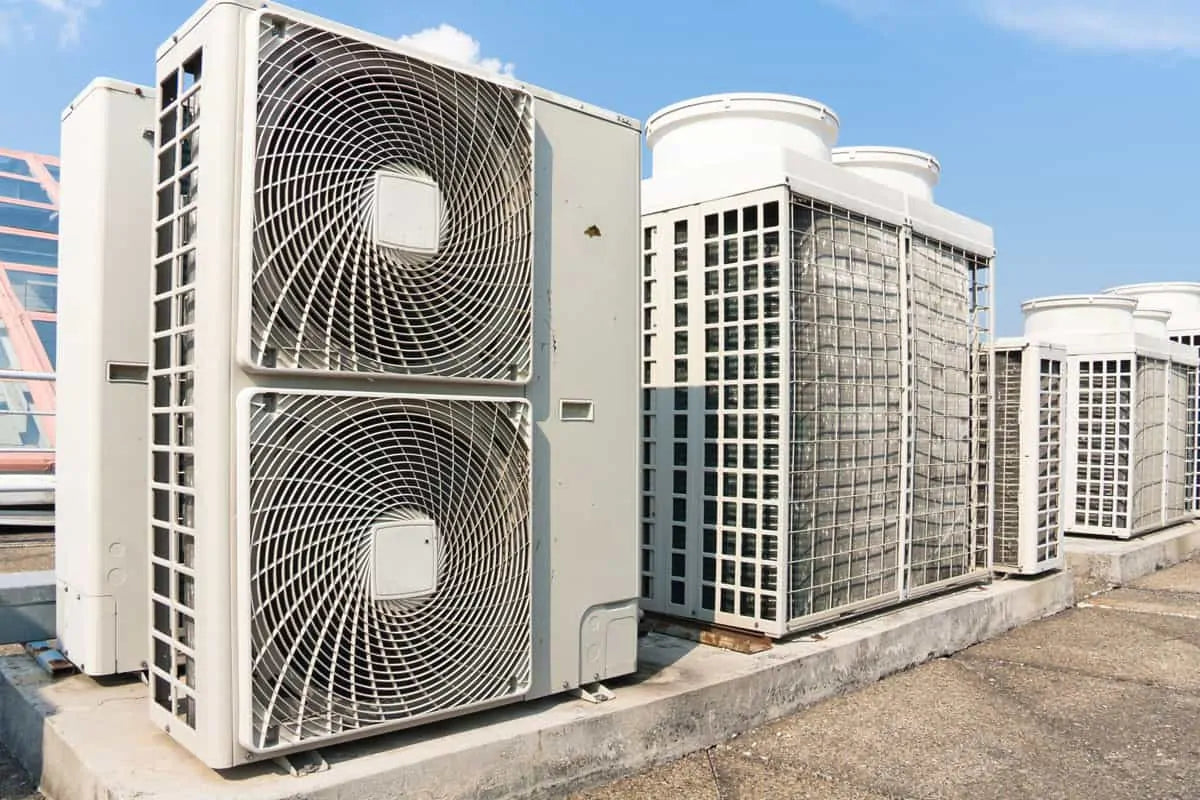

HVAC Systems

VFDs optimize fan and pump speeds in heating/cooling systems, reducing energy consumption by 30-50% while maintaining precise temperature control.

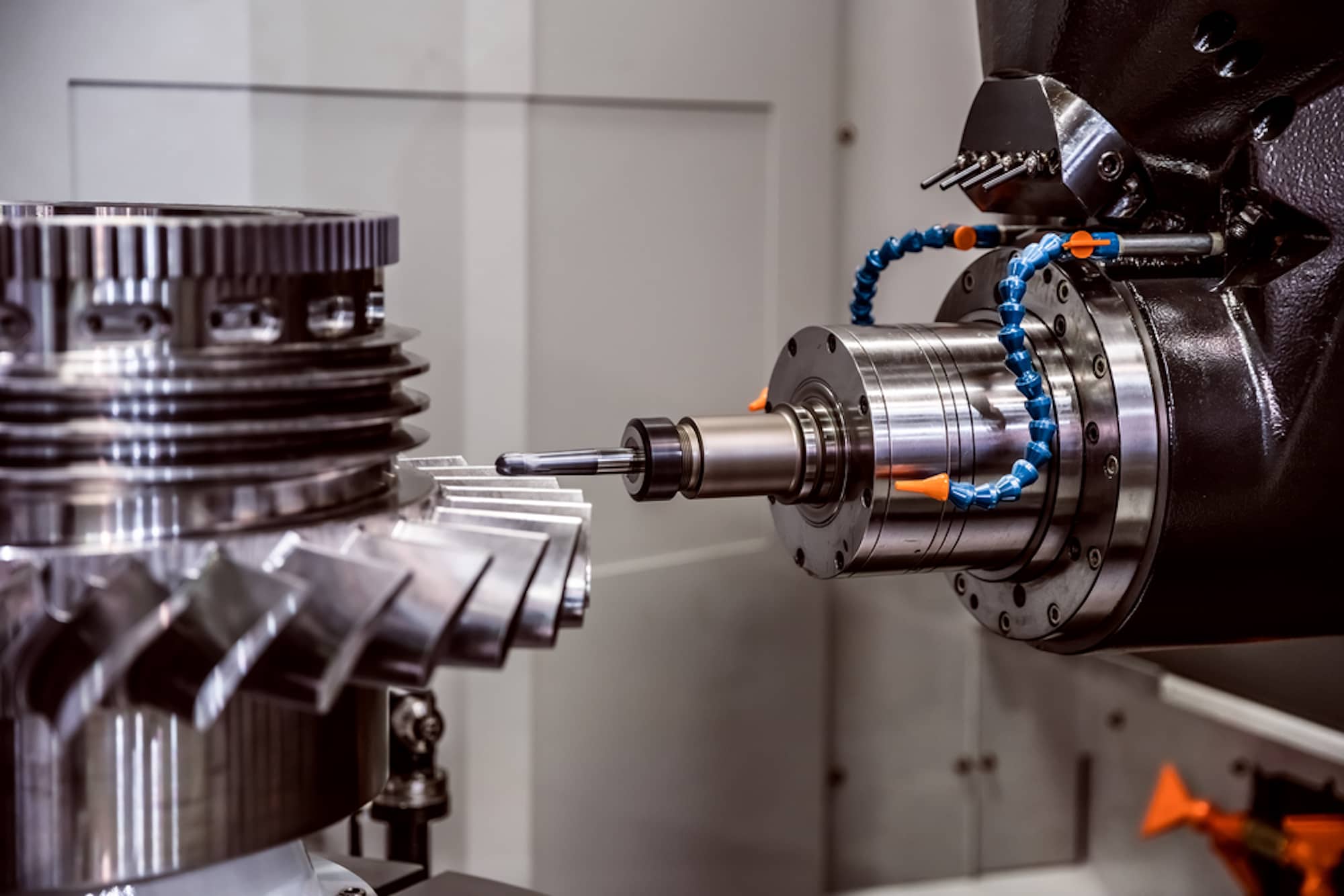

Machine Tools

Delivers precise and dynamic spindle speed control for CNC machining equipment, significantly improving dimensional accuracy and surface finish quality of workpieces.

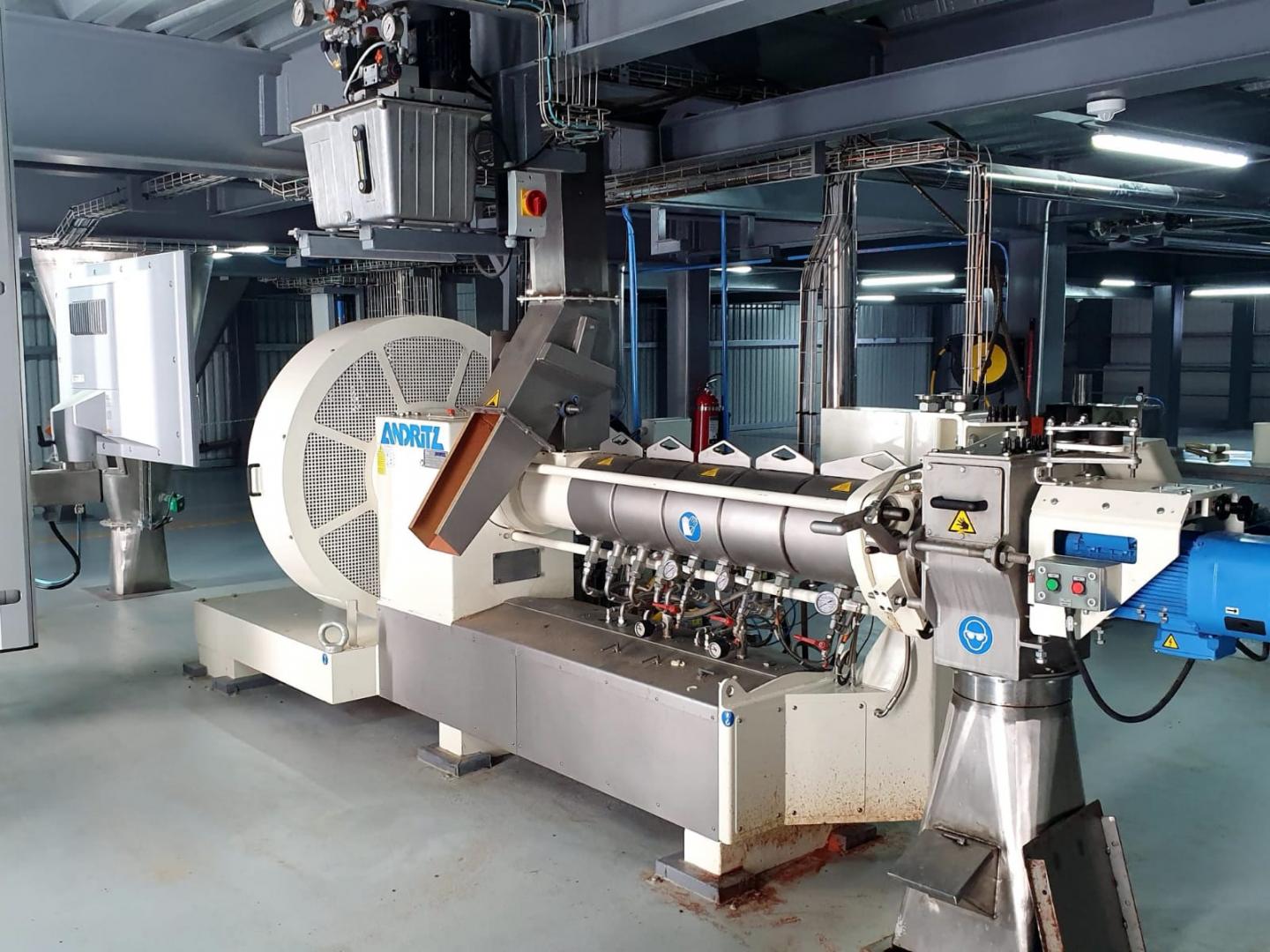

Extruders & Mixers

Maintains stable and consistent torque output for plastic/polymer extrusion equipment, even when processing materials with varying melt viscosities and flow characteristics.

FAQs

How should I select the right VFD size for my motor?

The VFD's current rating should match or exceed your motor's rated current. For applications requiring high precision, we recommend selecting a VFD one size larger than your motor's rating (e.g., choose an 11kW VFD for a 7.5kW motor).

How much energy can VFDs save in fan and pump applications?

VFDs typically achieve 20-60% energy savings in fan and pump systems by automatically adjusting motor speed to match actual load requirements. For optimal efficiency in pump applications, we recommend using the square-law V/F control mode.

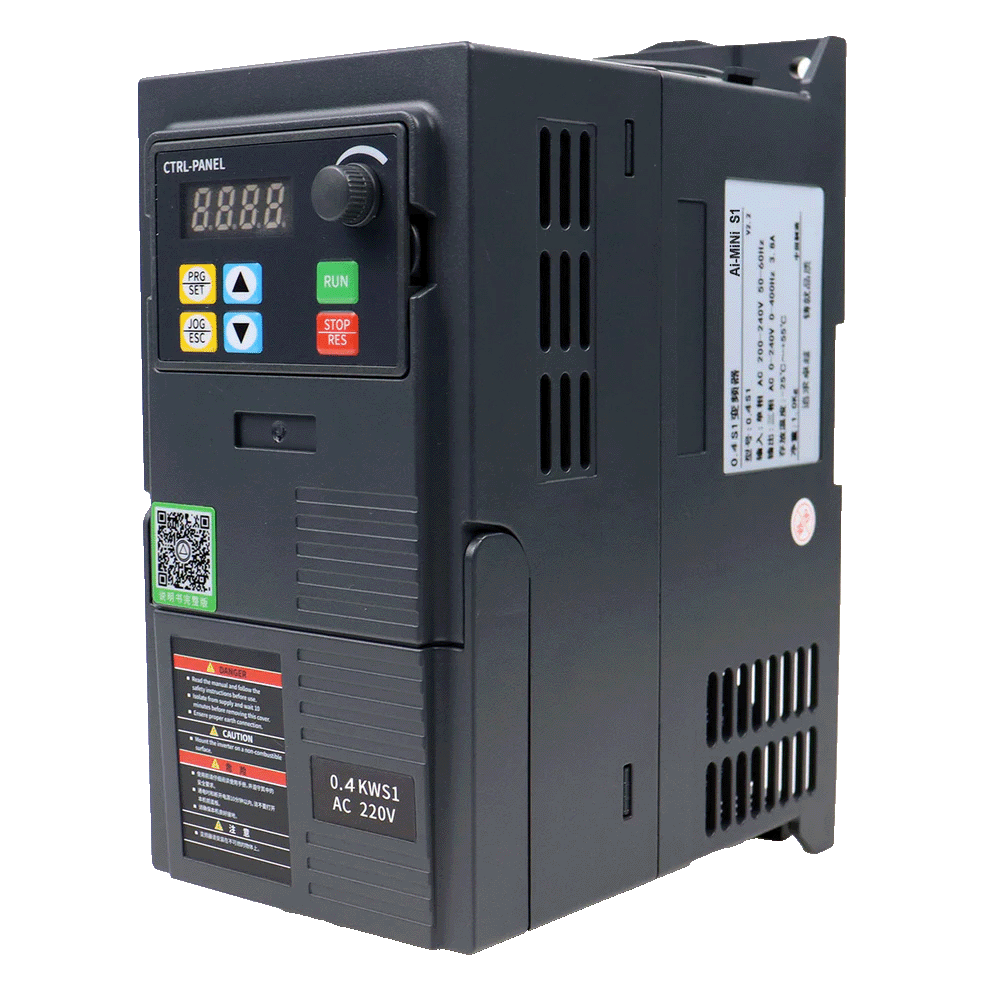

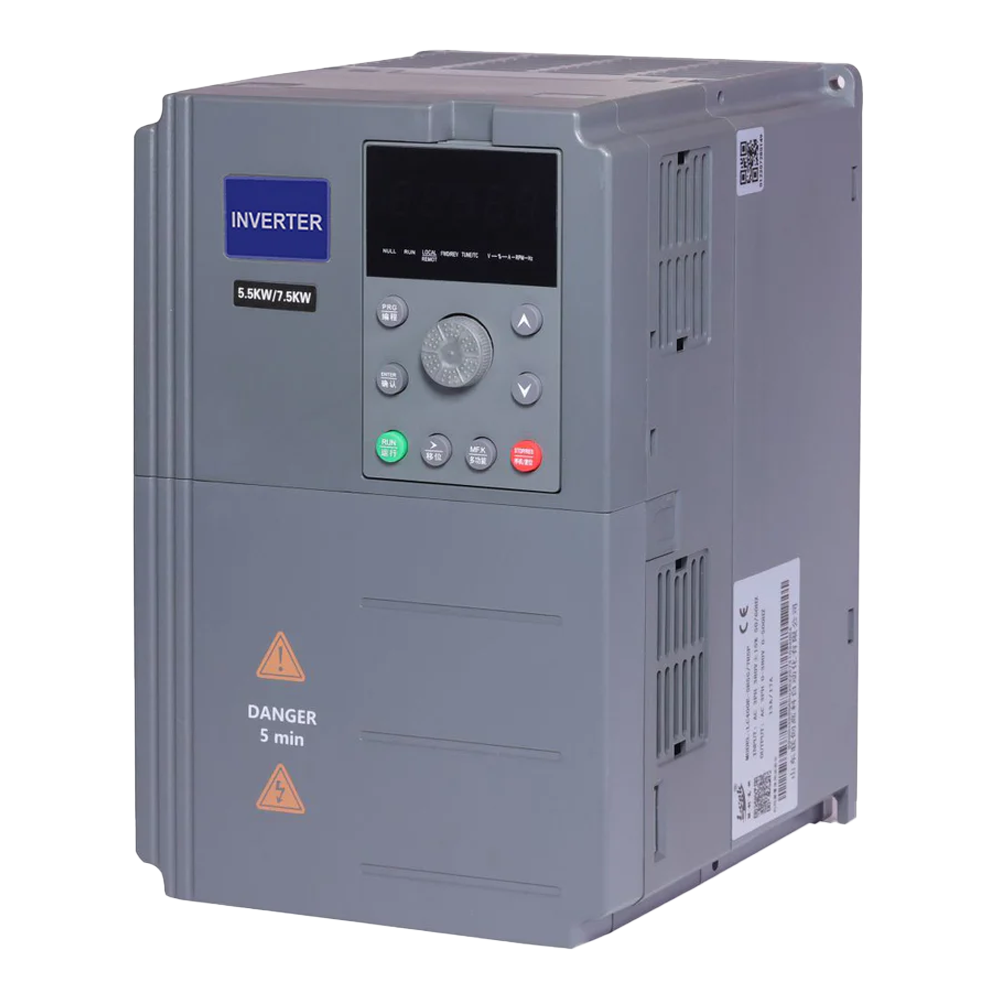

Can a VFD run a 3-phase motor from single-phase power?

Yes, special VFD models can convert single-phase input to three-phase output. However, this configuration is typically limited to motors of 5.5kW or smaller due to power constraints.

What protection features do VFDs offer for my motor?

Our VFDs provide comprehensive protection including: overload (±15% voltage tolerance), short-circuit, and overheating protection. Additionally, they support optional motor temperature monitoring through external sensors.

What are the environmental requirements for VFD installation?

For proper operation, install VFDs in environments with:

• Temperature between -10°C to 50°C

• Humidity below 95% RH

• Altitude under 1000 meters
• Always mount vertically on flame-retardant surfaces with adequate ventilation space.

How should I store VFDs for extended periods?

For long-term storage:

• Power on the VFD for at least 5 hours every 2 years.

• Use a voltage regulator to gradually increase input voltage to the rated value. This prevents electrolytic capacitor degradation during storage.

Can one VFD control multiple motors?

Yes, our VFDs can store parameters for up to 4 different motors, allowing quick switching between them via external signals or communication protocols - perfect for production line applications with multiple machines.

When should I use PID control with a VFD?

PID control is essential for applications requiring precise parameter regulation, such as:

• Constant-pressure water systems

• Flow control applications

• Temperature regulation systems
•  It automatically adjusts motor speed to maintain stable process conditions.

What communication protocols do your VFDs support?

Our VFDs are compatible with major industrial protocols including:

• RS-485 (Modbus RTU)

• Profibus-DP

• CANlink

• CANopen
This ensures seamless integration with various automation systems.

How do VFDs handle unstable power supply?

The built-in voltage stabilization feature maintains consistent output even with input voltage fluctuations up to ±15% of 380V, protecting your motor from power-related issues.
