How to Program a VFD: A Practical Guide Based on the A720H Series

Published: December 18, 2025

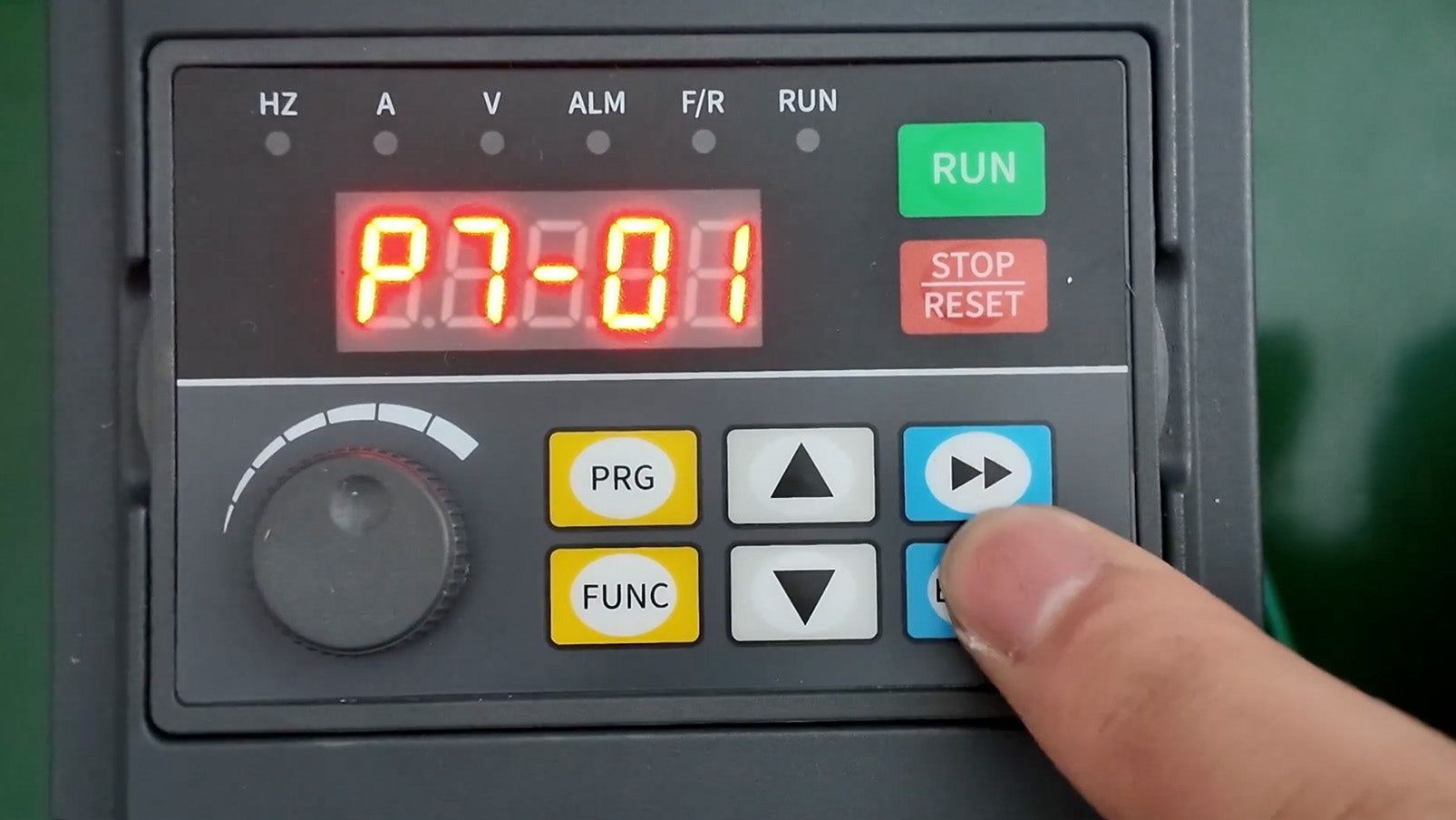

Programming a VFD is not about setting every parameter—it is about setting the right parameters in the correct order. The A720H series VFD is designed with a clear parameter structure that follows real commissioning logic. This guide explains how to program a A720H series drive step by step, using the actual parameter functions found in the manual.

A720H Variable Frequency Driver Manual

Before Programming: Verify Installation and Motor Condition

Before powering up the drive, ensure that the motor is connected directly to the VFD output terminals (U/V/W), with no switching devices operating between the drive and the motor under load.

The motor itself should be checked for insulation integrity and mechanical condition. Many commissioning issues are caused by wiring or motor faults rather than incorrect parameter settings.

Step 1: Enter Motor Nameplate Parameters

Motor parameters are the foundation of all control and protection functions in the A720H series.

The following parameters must match the motor nameplate:
    •    Rated Motor Voltage (e.g. P0.03)
    •    Rated Motor Current (P0.04)
    •    Rated Motor Frequency (P0.05)
    •    Rated Motor Speed (P0.06)
    •    Rated Motor Power (P0.07)

Once these parameters are entered correctly, the VFD can establish the proper V/F relationship and current limits. Incorrect motor data may lead to insufficient torque, overheating, or nuisance trips.

Step 2: Check Motor Rotation Direction

After entering the motor parameters, run the drive at a low frequency using the keypad. If the motor rotates in the wrong direction, the simplest and most reliable solution is to exchange any two motor output phases. Although direction can also be changed using control logic parameters, phase swapping avoids unnecessary configuration changes during commissioning.

Step 3: Set Minimum and Maximum Operating Frequency

The A720H series allows users to define a safe operating speed range for the motor.

Key parameters include:
• Maximum Output Frequency (P0.10)
• Minimum Output Frequency (P0.11)

These limits protect both the motor and mechanical system. Running below the minimum frequency for long periods can reduce cooling effectiveness, while exceeding the maximum frequency may cause excessive vibration, bearing wear, and torque reduction.

Step 4: Configure Acceleration and Deceleration Time

Acceleration and deceleration control is one of the primary benefits of using a VFD.

In the A720H series, this behavior is defined by:
• Acceleration Time (P0.12)
• Deceleration Time (P0.13)

Longer acceleration times reduce inrush current and mechanical stress during startup. During deceleration, high-inertia loads may regenerate energy back to the DC bus. If deceleration is too fast, this can cause overvoltage faults. In such cases, extending P0.13 or adding a braking resistor is recommended.

Step 5: Select Control Mode and Application Type

The A720H series supports different control strategies to match various load characteristics.

Typical parameters include:
• Control Mode Selection (P1.00)
• Load Type / Torque Characteristic (P1.01)

Fan and pump applications usually operate best with variable-torque settings and longer acceleration times. Conveyor and lifting applications often require constant-torque characteristics and more careful braking control. Selecting the correct control mode ensures stable torque output and proper overload protection.

Step 6: Configure Run Command and Speed Reference Source

By default, the VFD can be operated from the keypad, but most industrial systems use external signals.

Relevant parameters include:
• Run Command Source (P2.00)
• Frequency Reference Source (P2.01)

Digital inputs are commonly assigned for start/stop commands, while analog inputs or communication interfaces provide speed references. Proper scaling and signal selection should be verified before switching to automatic operation.

Final Commissioning and Troubleshooting

If unexpected behavior occurs during startup, restoring factory defaults (P9.00) and reprogramming parameters step by step is often the fastest way to isolate issues.

When basic parameter adjustments do not resolve the problem, consulting experienced technical support can prevent equipment damage and reduce downtime.

Effective programming of the A720H series VFD is not about adjusting every parameter—it is about understanding which parameters matter for your application and configuring them correctly.
