How to Select an SCR Power Controller for Electric Heater Loads?
Selecting an SCR power controller for electric heater loads is not only a matter of choosing a larger kW rating. A reliable selection needs to match the heater type, supply phase, rated voltage, working current, control method, input signal, cooling conditions, and protection requirements.
This guide gives a practical checklist for engineers, maintenance teams, and buyers who need to choose an SCR power controller for ovens, furnaces, heating tubes, infrared heaters, silicon carbon rods, and other electric heating equipment.
Already know your heater voltage and power? For detailed 3-phase power sizing and model matching, read this related guide: How Much Power Should a 3-Phase SCR Regulator Have for Heater Control?
1. Confirm the Heater Load Type
The first question is what type of load the SCR controller will drive. Most electric heaters are resistive loads, but their behavior can still be different depending on the heating element and process.
| Heater load | Selection point | Why it matters |
|---|---|---|
| Resistance wire, heating tube, cartridge heater | Standard SCR power control is usually suitable. | These loads are normally stable and easy to regulate. |
| Industrial oven, furnace, kiln | Check 3-phase power, cooling, protection, and control mode. | High power and long operating time make reliability important. |
| Infrared heater | Check response speed and control accuracy. | Fast response loads may need smoother power adjustment. |
| Silicon carbon rod or resistance-changing heater | Consider constant current or constant power control. | The heater resistance can change during operation. |
| Transformer primary heating load | Confirm compatibility before ordering. | Transformer loads can be more sensitive to inrush current and firing mode. |
2. Choose Single-Phase or Three-Phase Power
The SCR controller must match the power supply and heater wiring. Small heaters are often single-phase, while industrial heating systems are commonly three-phase.
For compact 220V heater systems, a single-phase SCR power regulator can be a simple and economical choice. For larger electric ovens, furnaces, reactors, and production heating equipment, a 3-phase SCR power regulator is usually more suitable.
Do not choose single-phase or three-phase only by power rating. Check the actual heater wiring first: single-phase two-wire, three-phase three-wire, or three-phase four-wire systems may require different controller configurations.
3. Check Voltage, Power, and Current
SCR power controllers are often selected by kW, but the current rating is just as important. The heat generated inside the controller is related to the current flowing through the SCR devices.
For a single-phase heater, the basic current calculation is:
I = P / U
For a three-phase heater, the basic current calculation is:
I = P / (1.732 x U)
Where I is current, P is heater power, and U is line voltage. After calculating current, leave enough margin for continuous operation, cabinet temperature, heater aging, and unstable power supply conditions.
If the system is a 3-phase heater and you want a direct model selection table for 220V, 380V, or 440V loads, use the detailed sizing article linked above instead of repeating the full chart here.
4. Decide the Control Mode
The control mode affects temperature stability, electrical noise, and the type of load that can be controlled.
| Control mode | Best for | Selection note |
|---|---|---|
| Phase-angle control | Precise and smooth power adjustment | Useful when the process needs fast response or continuous output regulation. |
| Zero-cross or cycle zero-crossing control | Resistive heaters with higher thermal inertia | Reduces switching noise compared with phase-angle control in many heating applications. |
| Constant voltage control | Stable resistive heating systems | Helps keep output voltage controlled according to the set value. |
| Constant current or constant power control | Loads whose resistance changes during heating | Useful for some silicon carbon rod and special heater applications. |
The APR3H series supports multiple control modes such as phase-angle control, zero-crossing control, constant power control, constant current control, and open-loop control, making it a practical option for many three-phase electric heater systems.
5. Match the Input Signal
Before ordering an SCR controller, confirm how your temperature controller, PLC, or manual control device will send the command signal.
| Input signal | Typical use | Selection note |
|---|---|---|
| 4-20mA | Industrial temperature controllers and PLC systems | Good for industrial signal transmission and long cable runs. |
| 0-10V or 0-5V | Analog control from controllers or automation systems | Common for simple proportional power adjustment. |
| Potentiometer | Manual power adjustment | Useful for simple local control without a PLC. |
| RS485 / MODBUS RTU | Upper computer or automation integration | Useful when monitoring and parameter control are required. |
For APR3H wiring, related control signal guides are also useful:
- How to Control a 3-Phase Heater by SCR Temperature Controller with 4-20mA Signal?
- How to Wire a Three-Phase Thyristor Power Controller with DC Signal?
- How Does a 3-Phase Thyristor Power Regulator Use a Potentiometer to Control Voltage?
6. Check Cooling and Cabinet Installation
An SCR controller will generate heat during operation. Even if the controller rating is correct, poor ventilation can still cause over-temperature faults or shorten service life.
Check these points before installation:
- Is there enough space around the controller for air circulation?
- Does the cabinet have proper ventilation or a cooling fan?
- Is the ambient temperature within the controller's operating range?
- Is the controller mounted in the correct direction for heat dissipation?
- Will dust, oil mist, moisture, or corrosive gas affect the cooling system?
For high-power three-phase heater applications, cooling is not optional. The APR3H product design includes radiators and DC fans, but the cabinet still needs proper airflow so the heat can leave the enclosure.
7. Review Protection Requirements
Protection features help reduce downtime and improve safety, especially in continuous industrial heating processes. Depending on the model and configuration, important protection functions can include phase loss protection, radiator overheat protection, load overcurrent protection, and three-phase current unbalance protection.
These protection functions do not replace proper system design. The complete panel should still use suitable fuses, circuit breakers, grounding, wiring terminals, and cable sizes. If the heater is installed in a production line, also consider alarm output wiring so the control system can respond to faults.

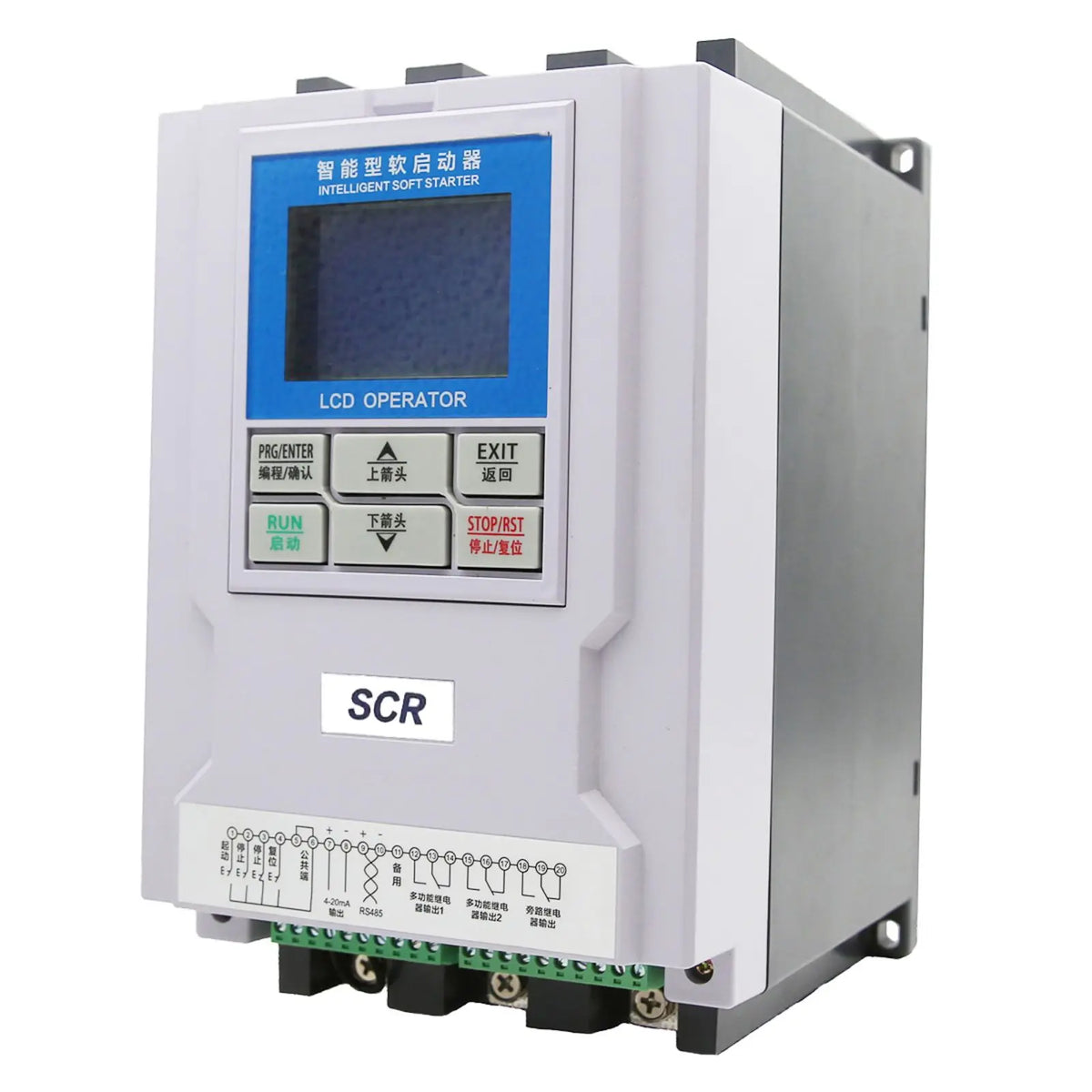

8. When to Choose the APR3H Series
For many three-phase electric heater loads, the APR3H series SCR power controller is a strong choice when the application needs more than simple manual power adjustment.
Consider APR3H when you need:
- Three-phase heater power control
- Phase-angle and zero-crossing control options
- 4-20mA, 0-5V, 0-10V, or potentiometer input
- LCD display and parameter setting
- MODBUS RTU communication
- Fault relay output or integration with a control cabinet
- Protection functions for industrial heater operation
For a starting reference, see the APR3H16G 16kW 3 Phase Thyristor Power Regulator. Larger APR3H models are available in the same 3-phase SCR power regulator collection.
APR3H Manuals
If you are checking terminal wiring, parameters, or control signal details, download the APR3H manuals here:
The 19-bit version is the latest version. If you need a 21-bit model or are replacing an older unit, contact the sales team before ordering.
Final Selection Checklist
Before choosing an SCR power controller, prepare the following information:
- Heater type and application
- Single-phase or three-phase power supply
- Rated voltage
- Total heater power or rated current
- Required control mode
- Input signal from the temperature controller or PLC
- Cabinet size, ventilation, and ambient temperature
- Required protection or alarm output functions
- Any special load behavior, such as changing resistance during heating
Conclusion
A good SCR power controller selection starts with the heater load, not only the kW number. After confirming the load type, phase, voltage, current, control mode, input signal, cooling, and protection requirements, it becomes much easier to choose a reliable controller for long-term heating operation.
If you are not sure which SCR controller fits your heater, send us the heater voltage, power, phase, load type, and control signal. Our team can help you choose a suitable single-phase or three-phase SCR power regulator for your heating system.
