For facility managers and engineers, the sound is unmistakable. A pump shuts down or a valve closes, followed immediately by a violent BANG. The pipeline shakes, flanges vibrate, and the entire system endures a massive stress test.

This phenomenon is Water Hammer (technically known as hydraulic shock). It is a leading cause of pipeline fatigue, ruptured seals, and reduced equipment lifespan. While mechanical arrestors and slow-closing check valves have traditionally been used to mitigate this issue, the most effective modern solution lies in intelligent motor control: the Variable Frequency Drive (VFD).



This article explores the mechanics of water hammer and details how VFD control strategies effectively prevent it.

Understanding the Physics of Water Hammer

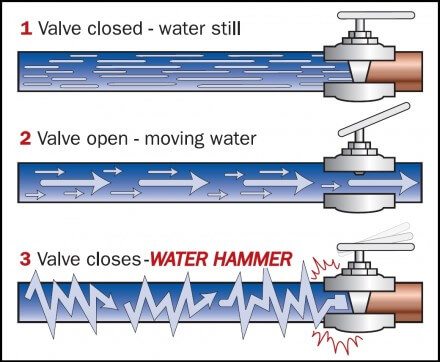

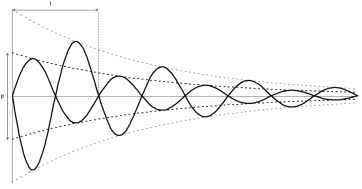

Water is virtually incompressible. When a column of fluid moving through a pipe is suddenly forced to stop or change direction, its kinetic energy does not simply disappear. Instead, it transforms into a high-pressure shock wave that travels back and forth along the pipe length.

In standard pumping systems, this shock is typically triggered by four events:

  • Abrupt Pump Starts: Rapid acceleration creates a sudden pressure surge.
  • Sudden Pump Stops: Power loss causes flow separation and column reversal.
  • Instant Valve Closure: Rapidly stopping flow generates immediate back-pressure.
  • Check Valve Slam: The most damaging event, occurring when a check valve crashes shut against reverse flow.

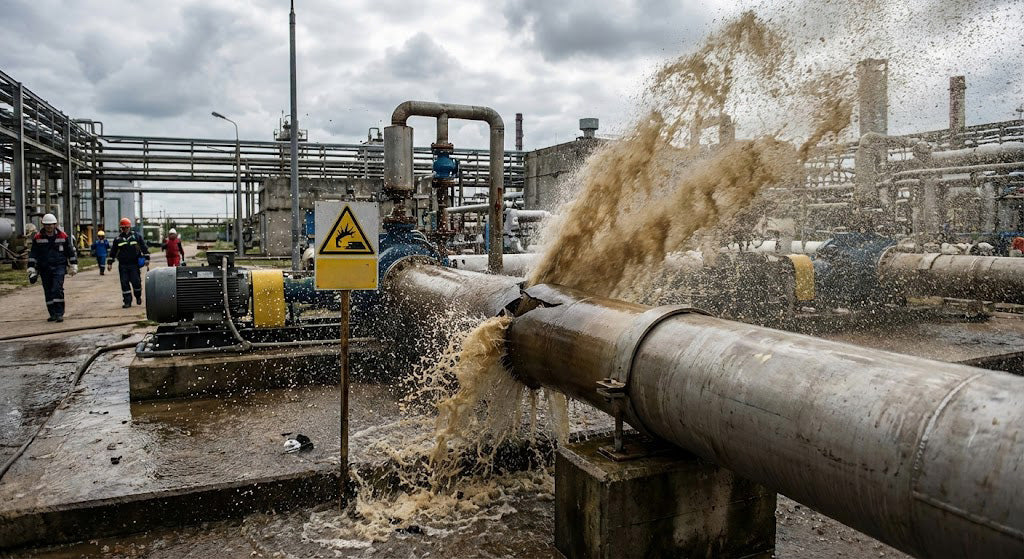

The Cost of Hydraulic Shock

If left unaddressed, the recurring stress leads to specific failures:

  • Pipeline Damage: Cracked welds and loosened joints due to vibration.
  • Valve Failure: Stems and seals are blown out by pressure spikes.
  • Pump Reverse-Thrust: Back-flow spins the pump in reverse, damaging bearings.
  • Instrumentation Drift: Sensitive sensors are decalibrated or destroyed.

How a VFD Mitigates Hydraulic Shock

The root cause of most pump-related water hammer is the "Direct-On-Line" (DOL) starting method. A DOL starter acts like a light switch—providing either 0% or 100% torque instantly.



A VFD changes the physics of the system by acting as a throttle. By controlling the frequency sent to the motor, it allows for smooth, linear transitions in speed.


1. Soft Start (Controlled Acceleration)


In a traditional startup, a pump can hit 3,500 RPM in under a second. The water column has no time to accelerate, resulting in a pressure surge.



A VFD utilizes a Soft Start mechanism. It ramps the motor speed up gradually over a pre-set time (typically 5 to 20 seconds). This allows the flow and pressure to rise linearly, filling the pipeline gently and eliminating the initial shock wave.


2. Soft Stop (Controlled Deceleration)


Shutdown hammer is often more destructive than startup hammer. When a standard pump cuts power, gravity immediately overcomes the water's momentum, sending it crashing back against the check valve.



A VFD prevents this via a Soft Stop. The drive slowly decelerates the pump (ramping down), gradually reducing flow velocity. This controlled reduction eliminates back-pressure spikes and allows check valves to seat gently rather than slamming shut.


3. PID Pressure Stabilization


Beyond start and stop sequences, VFDs use PID (Proportional-Integral-Derivative) Control to maintain stable system pressure during operation.

  • If demand decreases, the VFD slows the pump smoothly.
  • If demand increases, the VFD accelerates.

This prevents the system from "hunting" and reduces the frequent, jerky valve movements that often generate micro-hammering events.

Limitations: What a VFD Cannot Fix

While VFDs are the most effective tool for pump-induced hammer, they cannot overcome certain mechanical or physical issues:

  • Mechanical Valve Closure: If a downstream isolation valve is manually slammed shut by an operator, a VFD cannot prevent the resulting shock.
  • Steam Hammer: Shock caused by condensation in steam lines is thermodynamically distinct and unrelated to pump speed.
  • Air Pockets: Trapped air requires vacuum breakers or air release valves; a VFD cannot compensate for air compressibility.

Engineering Case Studies

The following examples illustrate the practical impact of VFD integration in different environments.

Case 1: High-Rise Building Booster

  • Problem: A 30-story building experienced severe "banging" and vibration every time the booster pumps cut off, disturbing tenants.
  • Solution: Installed VFDs with a programmed 15-second soft stop ramp.
  • Result: The water column momentum dissipated slowly. The noise was eliminated, and tenant complaints ceased.

Case 2: Long-Distance Water Transfer

  • Problem: A municipal transfer station faced frequent pipe cracks due to the inertia of water in a 5-mile pipeline.
  • Solution: Replaced soft-starters with VFDs to create a purely linear pressure ramp.
  • Result: Pressure surge magnitude was reduced by 80%, drastically lowering maintenance costs.

Case 3: Industrial Cooling Loop

  • Problem: Control valves were failing prematurely due to constant pressure fluctuation.
  • Solution: Implemented PID control via VFD to stabilize discharge pressure.
  • Result: Valve cycling was reduced, extending the mean time between failures (MTBF) for the valves.

Recommended Configuration Guidelines

To maximize water hammer prevention, the following VFD parameters are recommended as a baseline:

Parameter Recommended Range Engineering Note
Acceleration Time 5 – 20 Seconds Longer times may be needed for large diameter pipes.
Deceleration Time 10 – 40 Seconds Critical for preventing check valve slam.
PID P-Gain Low Prevents aggressive reaction to pressure changes.
Stop Mode Ramp to Stop Ensure "Coast to Stop" is disabled.

Summary

Water hammer is not merely an acoustic annoyance; it is a sign of a system operating outside its mechanical limits. By transitioning from abrupt on/off control to the modulated precision of a VFD, facilities achieve three critical outcomes:

  • Elimination of Pressure Spikes: Protecting piping and joints.
  • Stable Process Control: Ensuring consistent flow.
  • Extended Equipment Life: Reducing mechanical stress on pumps and valves.

For modern fluid systems, the VFD is not just an energy-saving device—it is an essential component for mechanical integrity.
