10A Imax SCR Power Regulator Module 3-Phase 380V, Power Adjustable 0 To Max, Control Signal 0-5V 0-10V 4-20mA Potentiometer

Three-phase voltage regulator module /Thyristor regulator module /Power Conditioning Module

SCR-3-10A 25A 40A 60A 80A 100A 120A 150A 200A free protective cover

Note:This module needs to be used together with a radiator and fan

Please note that this link does not contain a heat dissipation section, only a separate module

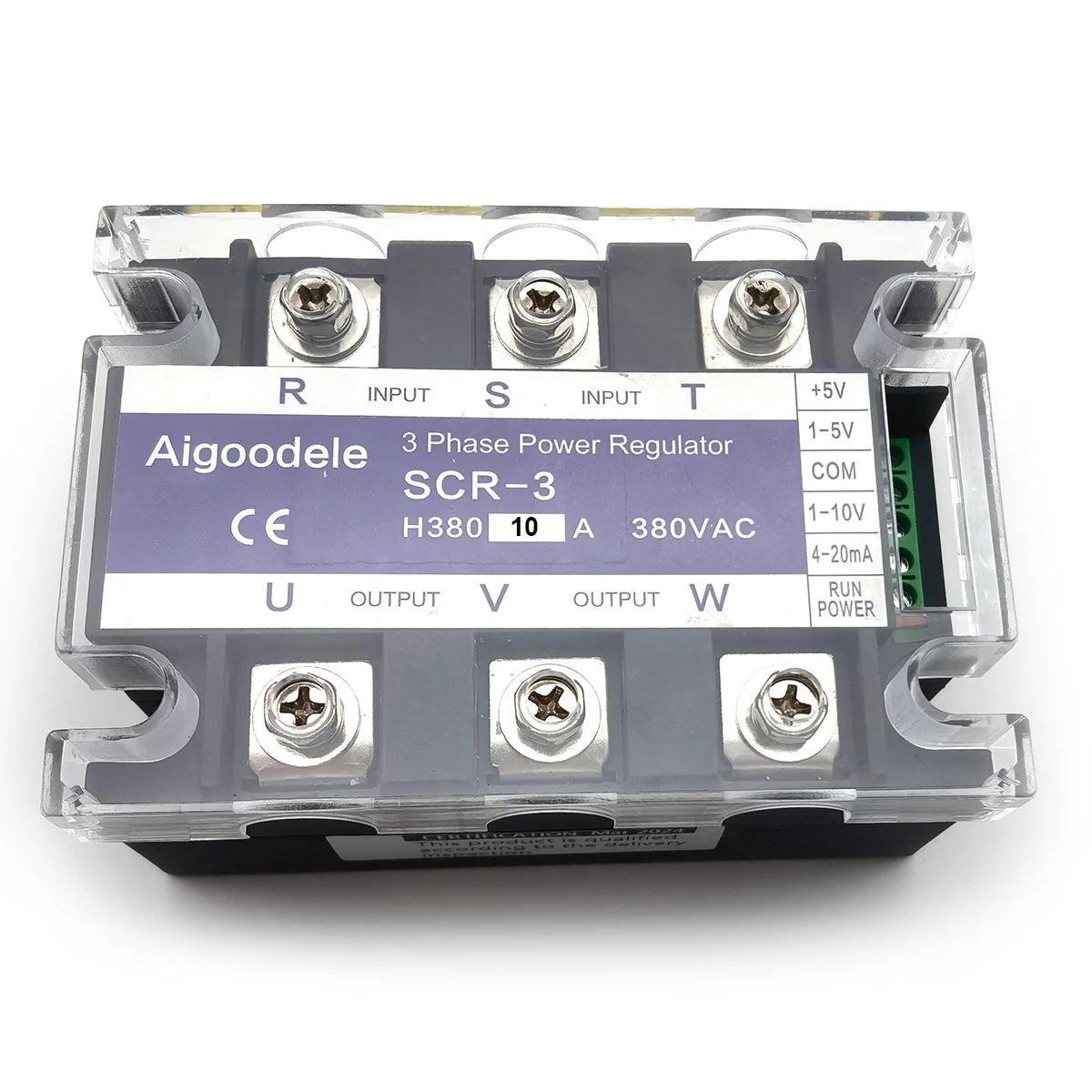

Three-phase intelligent AC voltage regulator module SCR-H380/10A 25A 40A 60A 80A 100A 120A 150A 200A

Main Technical Parameters

1, The main circuit voltage:380VAC

2, Power regulator adjustment range: 0-380V

3, A regulating potentiometer potentiometer: 10K

4, The input control: 1~5VDC 1-10VAC 4-20mA

5, The environment temperature: -10~45 ℃

Note: This type of voltage regulating module is not suitable for inductive loads such as transformers and motors.

Manual Control Mode of Potentiometer

As shown in the figure, the higher the voltageat the adjustable terminal, the greater themodule output+ The 5V voltage is generatedby the module itself and does not need to beprovided externally. lt is only used in conjunctionwith the manual potentiometer, not for otherpurposes. The selected potentiometer resistanceis 10KΩ

0-5Vdc Control

As shown in the figure, it can accept 0-5Vdcanalog signals of single chip microcomputer,the positive pole ofinput control is connectedto 0-5V terminal, and the negative pole isconnected to COM terminal. The input impedancebetween 0-5V terminal and COM terminal insidethe module is greater than 30KΩ

0-10vdc Control Mode

As shown in the figure, it can accept 0-10Vdcanalog signals of PLC, etc. The input impedanceof 0-10Vdc end relative to COM end inside themodule is greater than 15K. When this mode isadopted, the+5V end and COM end are shorted.and 0-10vdc control end enters by way of

4-20mA Control Mode

As shown in the figure, 4-20mA analog signalof temperature control meter can be accepted,and the input impedance between 4-20mA endand COM end inside the module is 250Ω

Heating: electric furnace, injection molding equipment, thermoforming, textile equipment, infrared heating, drying system

Application Occasion:Lndustrial Kiln /Automatic Equipment /Heating Equipment /Lighting Equipment
