280kW Competitive Price SCR Controller | 3 Phase Thyristor Heater Power Regulator
280kW Competitive Price SCR Controller | 3 Phase Thyristor Heater Power Regulator
280kW Competitive Price SCR Controller | 3 Phase Thyristor Heater Power Regulator

280kW Competitive Price SCR Controller | 3 Phase Thyristor Heater Power Regulator

SKU:

APR3H280G

( Selection Guide )
$1,550.00

Free Shipping
Quantity

Description

Brand: AIGOODELE

Certification: CE

Frequency: 50/60Hz

Phase: 3

Condition: New

Customized: Yes

Origin: China

HS Code: 9032899099

Input Voltage: 380V +/-15%

Custom Voltage: 220V, 440V, 690V, 1140V

Adaptive: Resistive Heaters

Production Capacity: 500,000 pcs/year

Keypad: External Keyboard Available

Control Mode: Phase-Angle, Zero-Crossing

Package: Carton Box, Pallet

Our SCR Power Controller offers precise power and temperature regulation, making it ideal for various industrial applications. Designed with flexibility and reliability in mind, it supports multiple control modes:

Constant power control

Constant current control

Open loop control

Cycle zero crossing control

To ensure safe and efficient operation, the controller includes the following protective features:

Power supply phase loss protection

Radiator overheat protection

Load overcurrent protection

Three-phase current unbalance protection

The device is equipped with an LCD display for real-time monitoring, allowing easy customization of parameters. Input methods such as 4-20mA, 0-5V, 0-10V, and potentiometer control are supported, ensuring seamless integration with PLCs and other systems.

For effective heat management, each unit comes with dual DC fans and radiators, guaranteeing optimal performance and extending the lifespan of the controller. The energy-saving constant temperature control reduces power fluctuations and enhances operational efficiency.

For loads like silicon carbon rods or heaters, this controller provides excellent performance, ensuring safety and efficiency in your operations. The operation panel can also be extended with a lead-out cable for easy integration into your specific setup.

For customization options or further assistance, feel free to contact our customer support team.

Videos

How to Wire APR3H Thyristor Power Controller?

Title

How to Set the Parameters of APR3H Thyristor Controller?

Control Signals

Here’s how you can connect our SCR power controllers based on different control signals. Each control method is designed for ease of use and ensures efficient and safe power regulation for your heating systems:

4-20mA
This is one of the most common methods for regulating heating power. For detailed instructions on how to connect the SCR power controllers with a 4-20mA temperature controller, please refer to our blog on 4-20mA control signal connection.

0-5V / 0-10V
If you are using a DC voltage signal (0-5V or 0-10V) to control heating power, our controllers support this input. For the wiring details, check our guide on using DC voltage inputs.

Control Signal: Potentiometer
A potentiometer can also be used to adjust the heating power. Learn how to wire the SCR power controllers with a potentiometer as an input signal in our potentiometer control wiring guide.

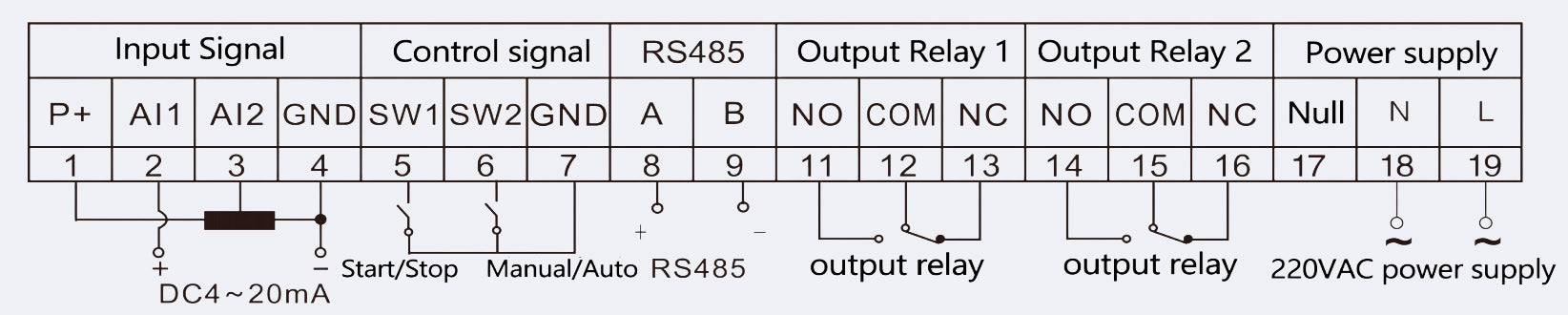

Terminal Functions

No.

Mark

Functional Description

1

P+

Reference power supply +5V: Feed reference for external potentiometers

2

AI1

Current analog input port 1: DC 4-20 / 0-20 mA (input impedance 125Ω), with 4-terminal GND to form an input loop.

3

AI2

Voltage analog input port 2: 0~5V input/potentiometer input (center tap)/DC0~10V, and GND form the input circuit. 0~5V 0~10V no need to connect P+

4

GND

Signal common ground: analog signal negative terminal, switch signal common terminal

5

SW1

External start/stop control terminal: SW1 and 7 terminal GND constitute the start/stop, when the two terminals are closed, the scr power regulator works, and vice versa to stop.

6

SW2

Analog input port selection: SW2 and terminal 7 GND, closed to select analog input port 2; disconnected to select input port 1.

No.

Mark

Functional Description

7

GND

Signal common: analog signal negative, switch signal common

8

A

RS485 communication port, RS485+

9

B

RS485 communication port, RS485-

11

NO

12

COM

13

NC

Output relay 1: according to the menu A basic parameters A07 function selection can be used as an output signal, or fault alarm output signal No., load capacity AC240V/5A, DC24V/5A NO: Normally open NC: Normally closed

14

NO

15

COM

16

NC

Output relay 2: according to the menu A basic parameters A08 function selection can be used as an output signal, or fault alarm output signal No., load capacity AC240V/5A, DC24V/5A NO: Normally open NC: Normally closed

18

L

19

N

External AC 220V power supply

Documents

Manual for APR3H Series SCR Power Controller
