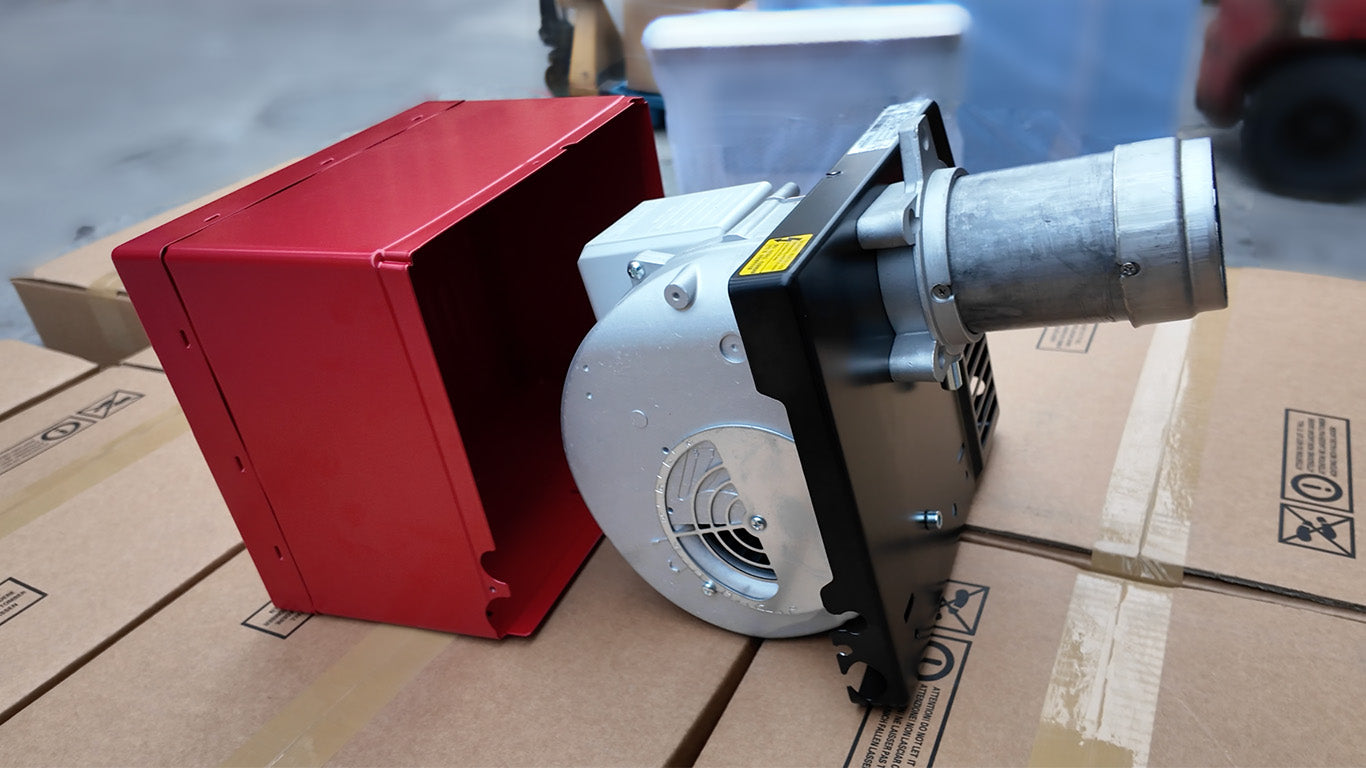

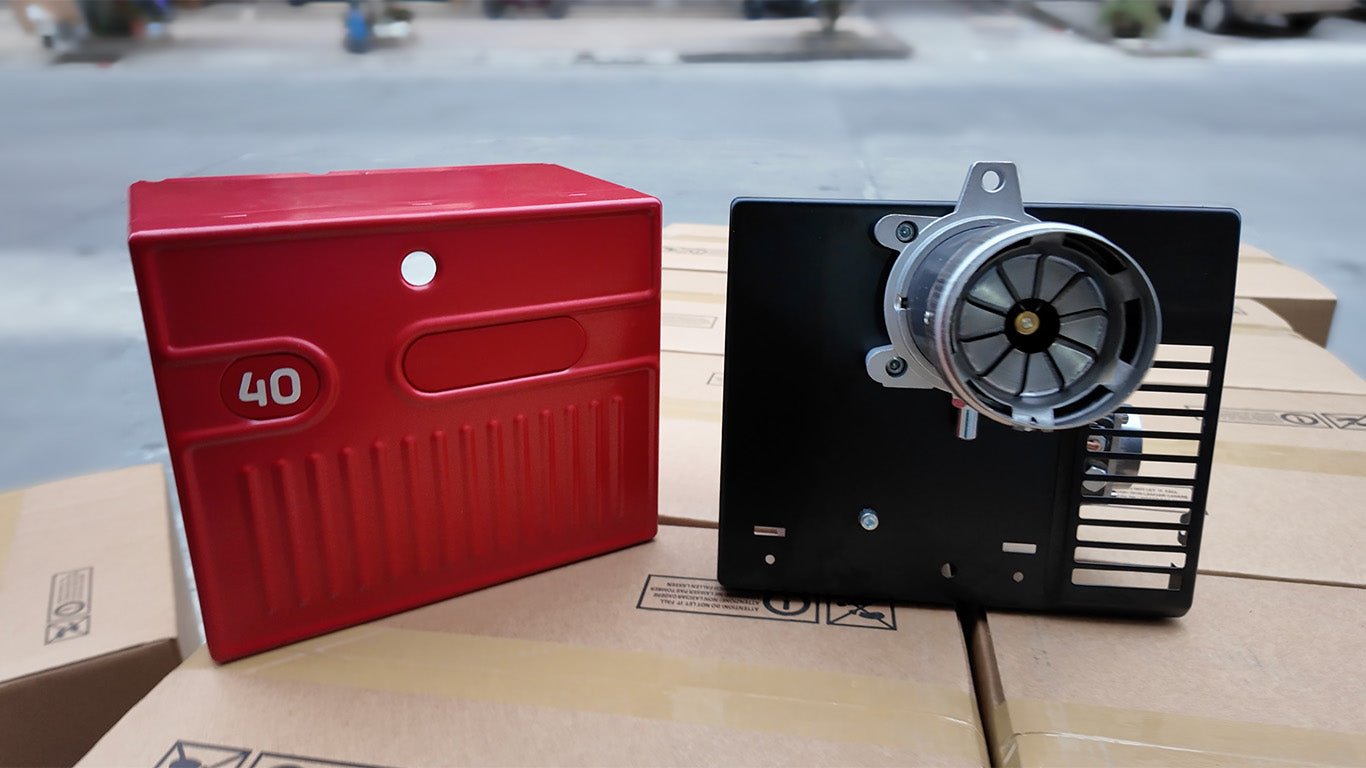

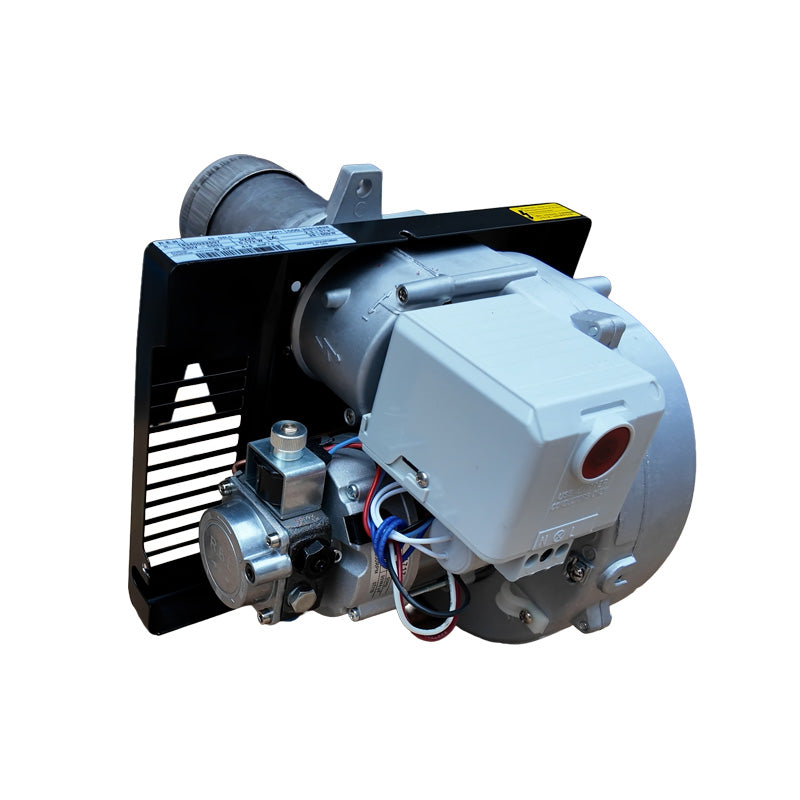

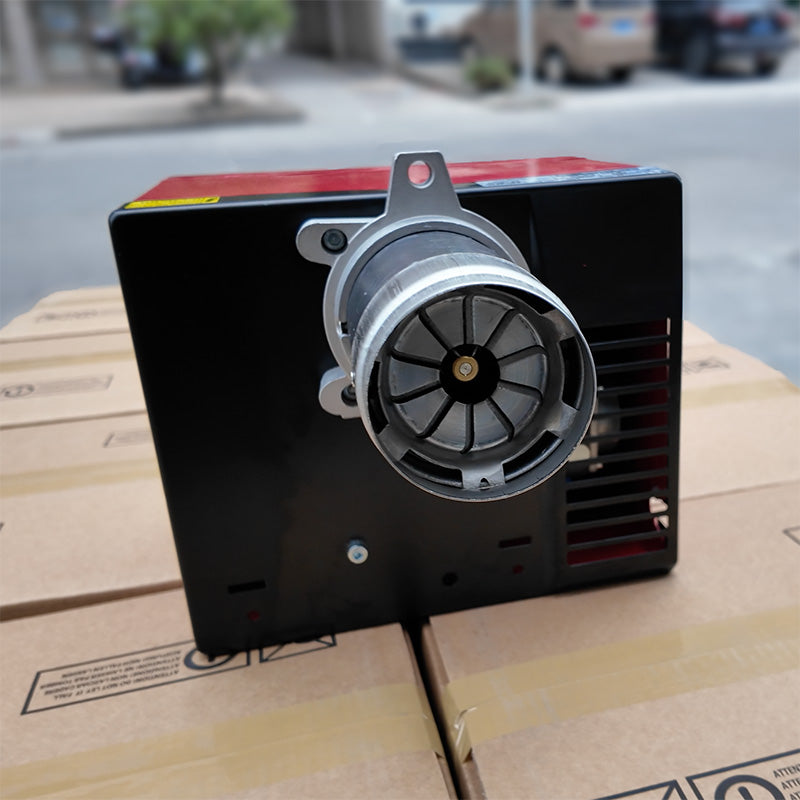

AL-G5/10/20-LC Light Oil Industrial Boiler Burners | 28-213kW Single Stage

AL-G5/10/20-LC Light Oil Industrial Boiler Burners | 28-213kW Single Stage

Name: AL-G5/10/20-LC Light Oil Industrial Boiler Burners | 28-213kW Single Stage
Brand: AIGOODELE
SKU: AL-G5LC-S
Price: 285.7 USD
Availability: InStock

$285.70

Ship in 2 days

MODEL

AL G5 LC / 28~60kW

AL G10 LC / 54~120kW

AL G20 LC / 95~213

SKU:

AL-G5LC-S

Features

Compact Dimensions: Specifically designed to fit into modern, small-footprint boiler casings.

Integrated Control: Features the RBL530SE control box with integrated ignition transformer and lockout reset.

Low Noise: Optimized fan system and sound-deadening intake for quiet operation in residential areas.

Fuel Efficiency: High-performance oil pump and combustion head ensure complete atomization and fuel savings.

Standard Compliance: Fully compliant with EN 267 European standards for liquid fuel burners.

Model			G5	G10	G20
Burner operation mode			One stage
Heat output	min - max	kW kg/h	28 - 60 2.3 - 5	54 - 120 4.5 - 10	95 - 213 8 - 18
Fuel			Light oil, viscosity 4 – 6 mm²/s at 20°C
Electrical supply			Single phase, 230V ± 10% ~ 50Hz
Motor		rpm - rad/s A	2850 - 298 0.75	2850 - 298 0.8	2750 - 288 1.4
Capacitor		μF	4	4	5
Absorbed electrical power		kW	0.13	0.17	0.32
