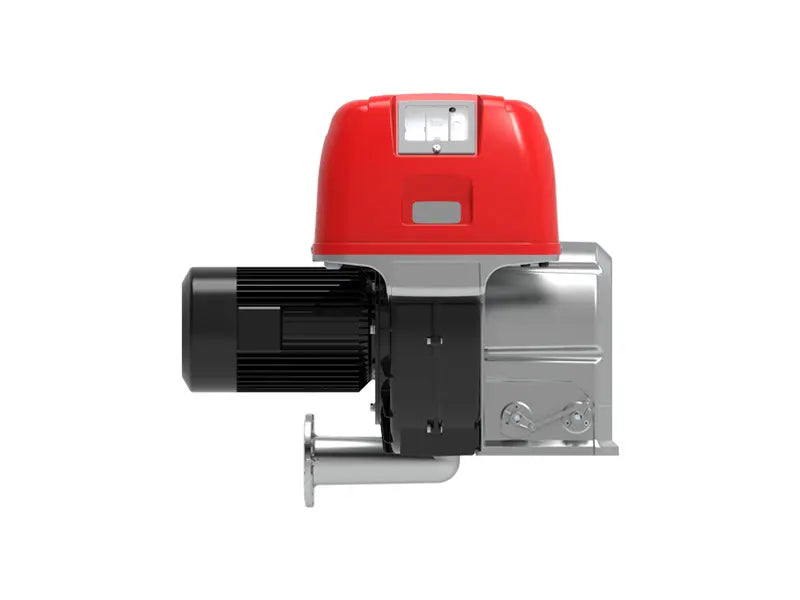

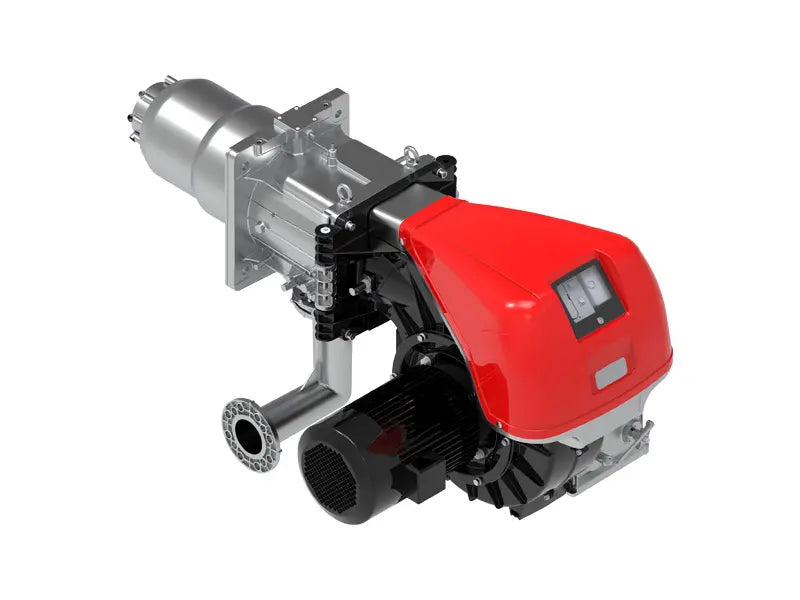

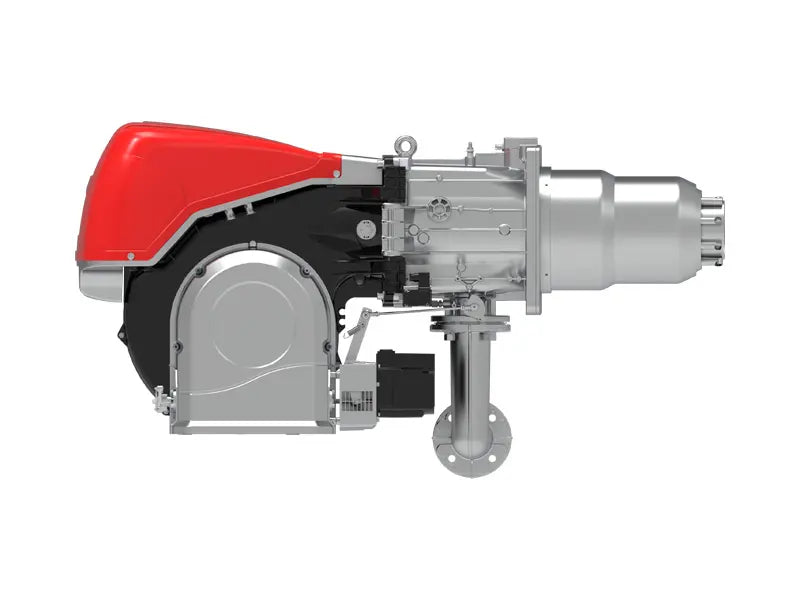

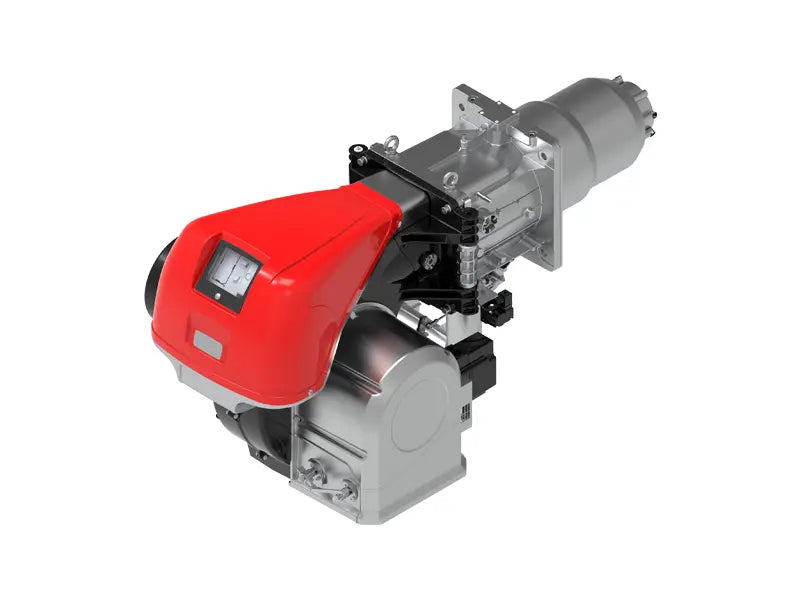

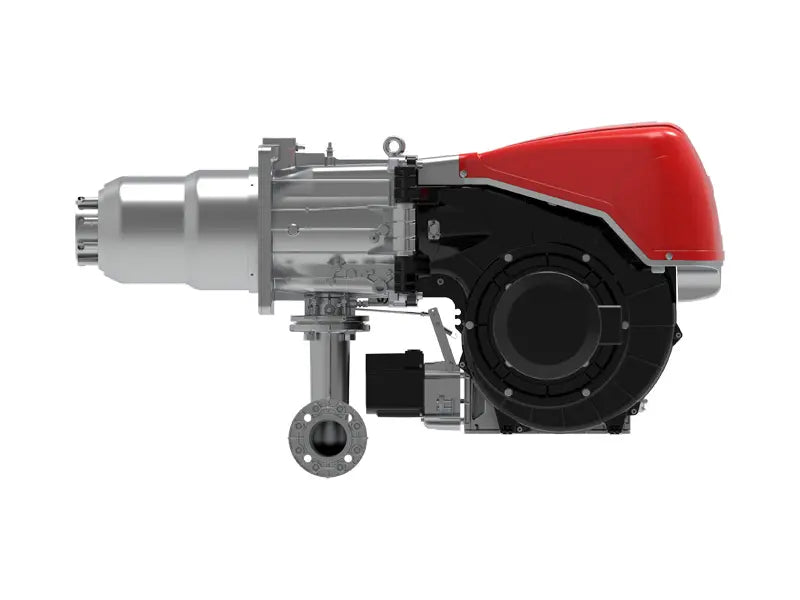

AS-310/410/510/610/M BLU Low NOx Industrial Burners 400-6250kW

AS-310/410/510/610/M BLU Low NOx Industrial Burners 400-6250kW

Name: AS-310/410/510/610/M BLU Low NOx Industrial Burners 400-6250kW
Brand: AIGOODELE
SKU: AS-310-M
Price: 4857.1 USD
Availability: InStock

$4,857.10

Ship in 2 days

MODEL

AS-310 BLU / 400~3630kW

AS-410 BLU / 500~4450kW

AS-510 BLU / 680~5250kW

AS-610 BLU / 1000~6250kW

Control Type

Mechanical Modulating

Electronic Modulating (PLC)

Electronic Modulating (Siemens)

Electronic Modulating (Lamtec)

SKU:

AS-310-M

Features

Low NOx Technology: A specialized combustion head reduces nitrogen oxide (NOx) emissions, often meeting Class 3 compliance (< 60 mg/kWh).

Modulating Operation: These burners can operate as two-stage progressive or fully modulating with a PID logic regulator. A mechanical cam ensures a high modulation ratio, matching heat demand and potentially lowering fuel costs.

Digital Control: Systems like Siemens RMG/M88.62 or LMV use servomotors for precise air-fuel ratio control, optimizing combustion and safety.

High Efficiency: The precise control and efficient combustion lead to high efficiency and reduced fuel use.

Maintenance: A hinged opening/sliding bar system simplifies access to internal components for maintenance.

Design: The monoblock design includes a high-performance, low-sound fan and a sound-proofed air intake.

Model			AS-310 BLU	AS-410 BLU	AS-510 BLU	AS-610 BLU
Burner operation mode			Two stage or Mechanical modulating
Heat output	min - max	kW	400/1200 ÷ 3630	500/1500 ÷ 4450	680/1800 ÷ 5250	1000/2200 ÷ 6250
Use			Boilers: water, steam and diathermic oil
Control box		type	RMG/M 88.620A2 Siemens LMV6 Lamtec BT300 PLC
Main electrical supply			3 ~ 380V 50 Hz
Fan motor		rmp V kW A	2910 400/690 7.5 13.9/8.0	2930 400/690 9.2 16.5/9.6	2920 400/690 12 21/12.2	2915 400/690 15 26.8/15.5
