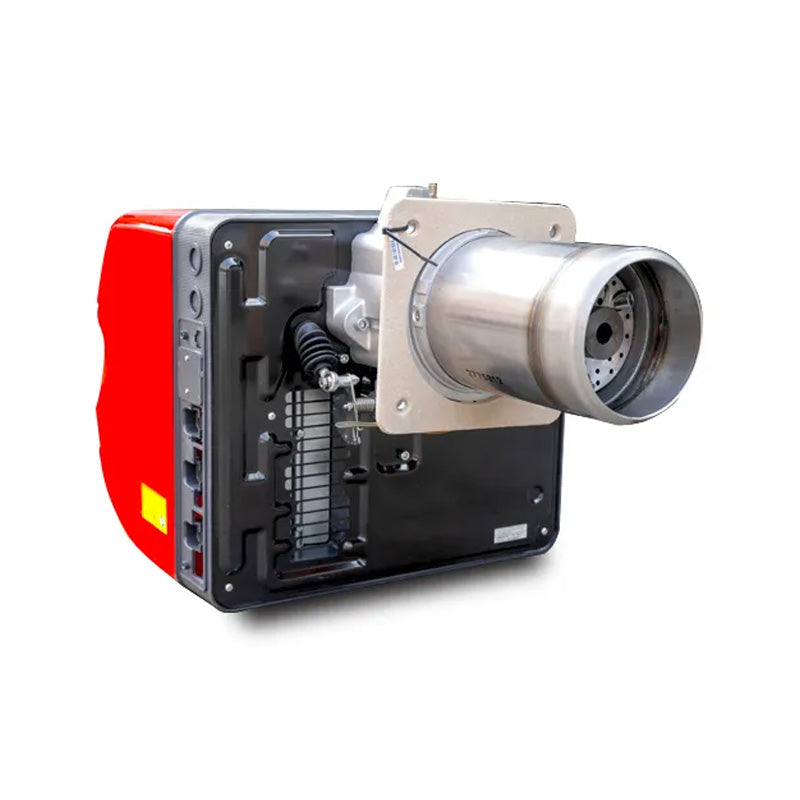

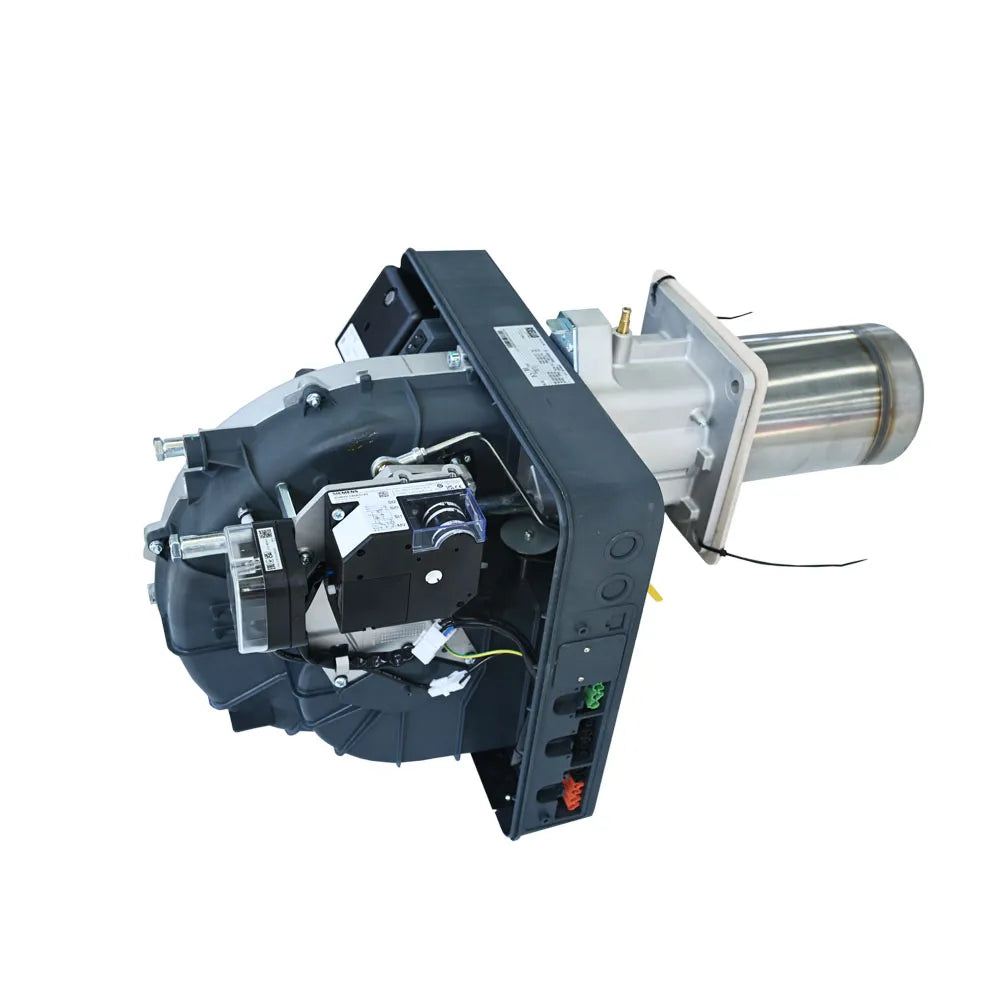

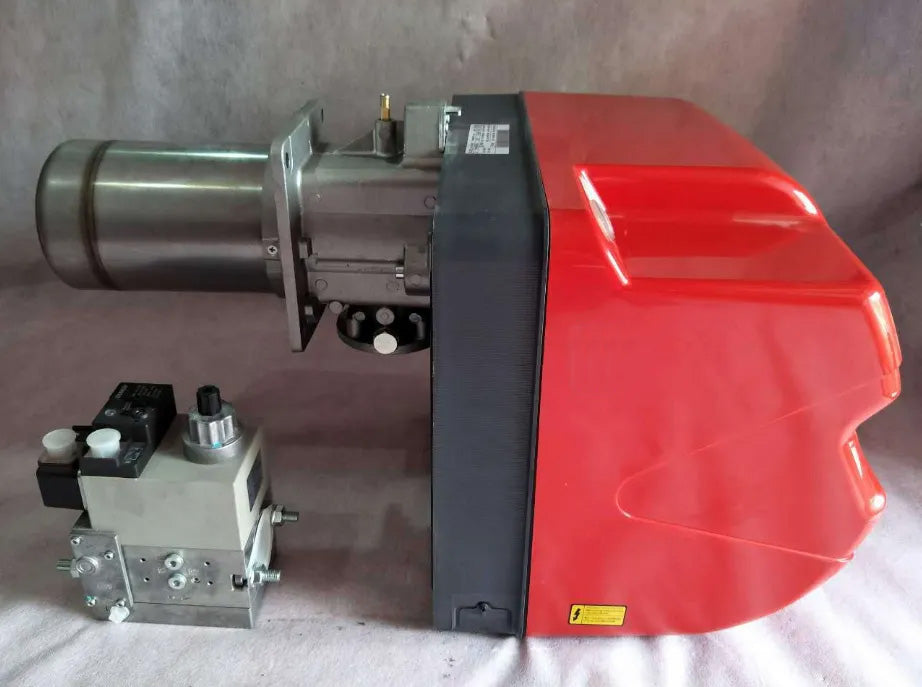

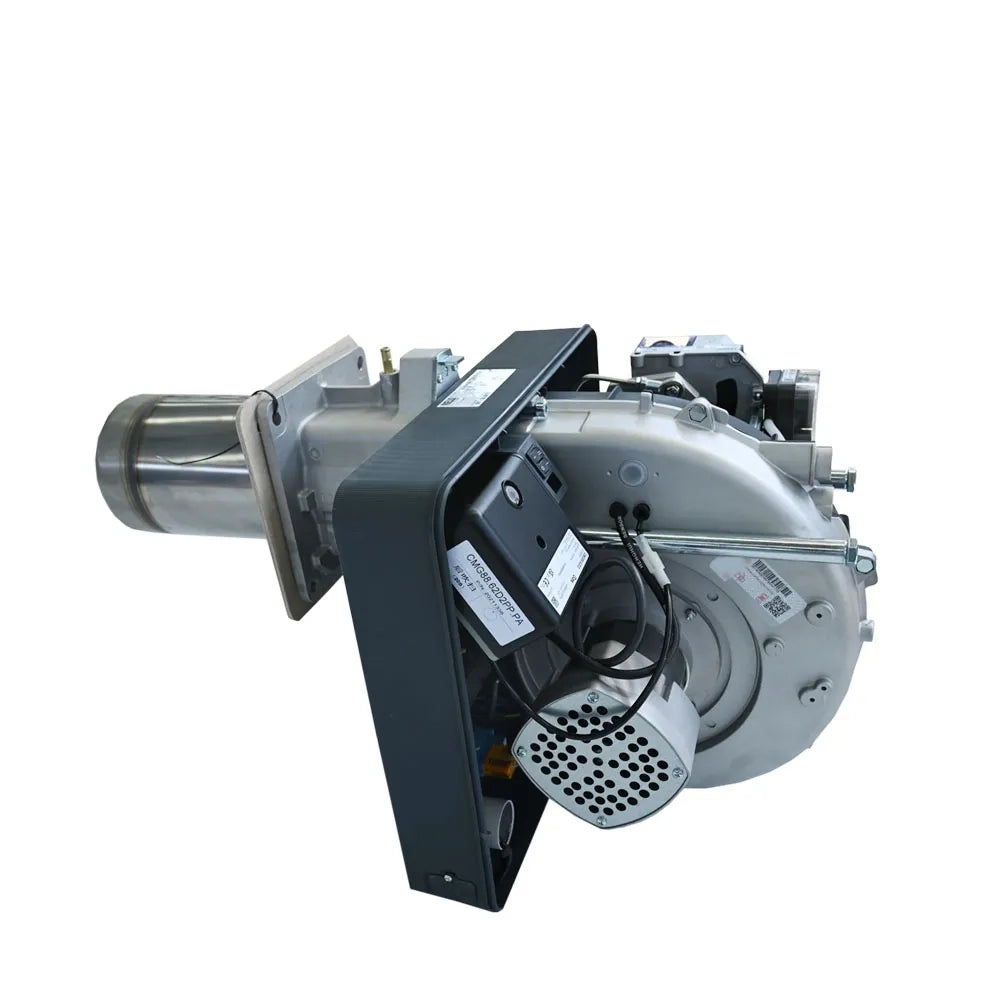

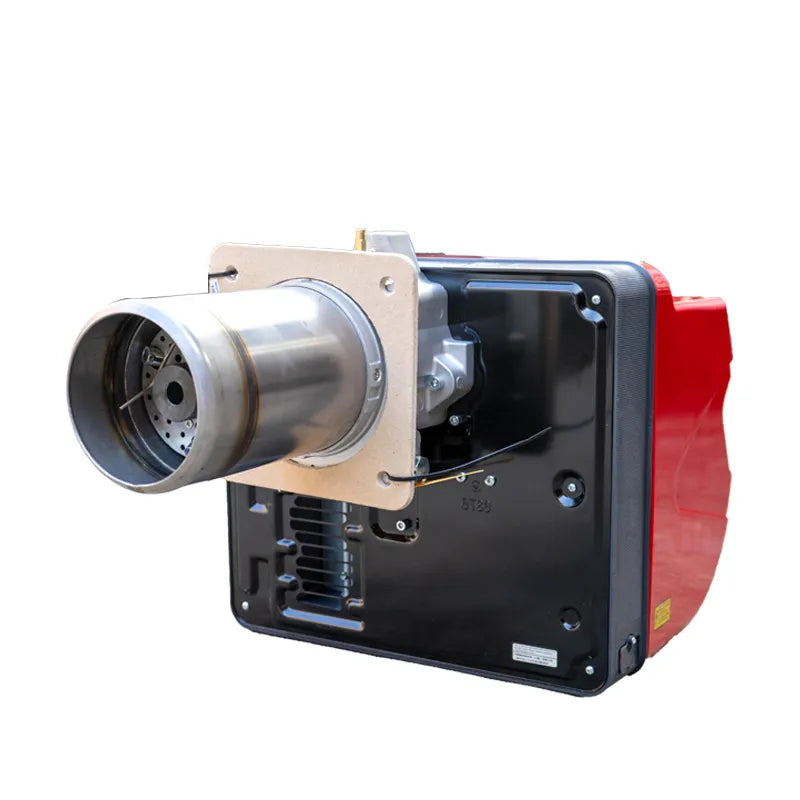

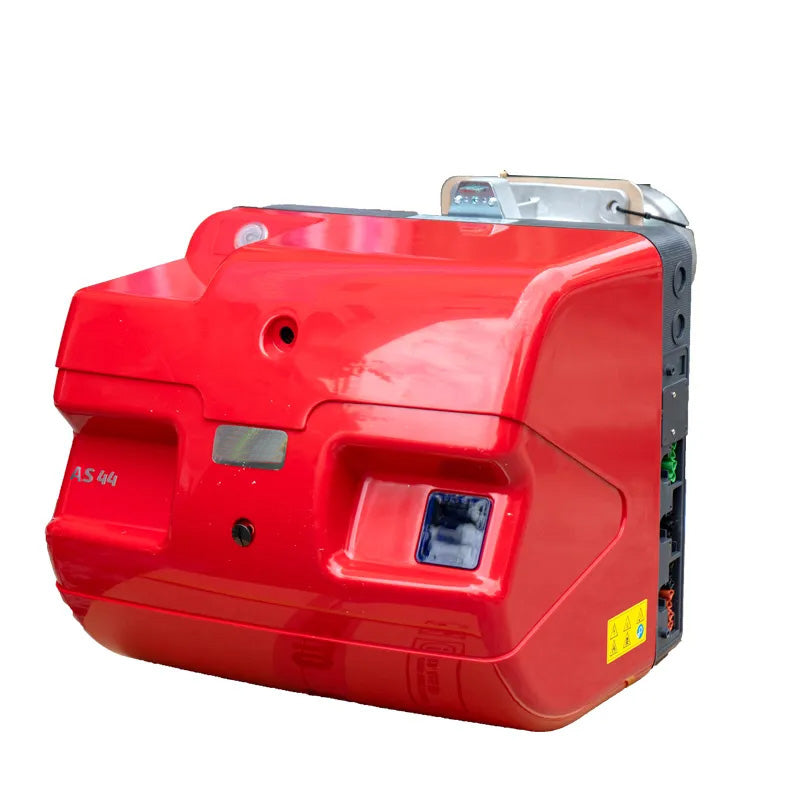

AS-34/44 Industrial Gas Burners 45-550kW One/Two-Stage Modulating

AS-34/44 Industrial Gas Burners 45-550kW One/Two-Stage Modulating

Name: AS-34/44 Industrial Gas Burners 45-550kW One/Two-Stage Modulating
Brand: AIGOODELE
SKU: AS-34-S
Price: 385.7 USD
Availability: InStock

$385.70

Ship in 2 days

MODEL

AS-34 MZ / 45~390kW

AS-44 MZ / 80~550kW

Control Type

One-Stage

Two-Stage

Mechanical Modulating

SKU:

AS-34-S

Features

Advanced Combustion Head Design: Features a specialized combustion head geometry that significantly reduces NOx emissions while ensuring a highly stable and efficient flame across the entire modulation range.

Mechanical Modulation: The AS-34-M and AS-44-M versions support precise load control via modulation, greatly enhancing energy efficiency and reducing equipment wear and tear.

High-Performance Fan System: Incorporates a patented centrifugal fan design with forward-curved blades, which reduces operational noise and provides superior pressure-overcoming capabilities to suit various furnace structures.

Intelligent Control Box: Equipped with a microprocessor-based control system that includes status display, fault diagnostics, and remote reset functions, significantly simplifying the troubleshooting process.

Simplified Maintenance: Features a unique "slide-out" rail design, allowing the combustion head assembly to be extracted for cleaning or inspection without removing the entire burner from the boiler.

Model			AS-34 MZ	AS-44 MZ
Burner operation mode			One stage or Two stage or Mechanical modulating
Heat output	min - max	kW Mcal/h	45~390 39~336	80~550 69~473
Heat output	min - max	kW Mcal/h	45~390 39~336	80~550 69~473
Use			Boilers: water and diathermic oil
Electrical supply			Single phase, 230V ± 10%/50Hz
Control box		type	One stage & Two stage: RMG 88.620A2 Mechanical modulating: RMG/M 88.620A2
Fan motor		rmp V W A	2800 230 300 2.4	2800 230 420 2.6
