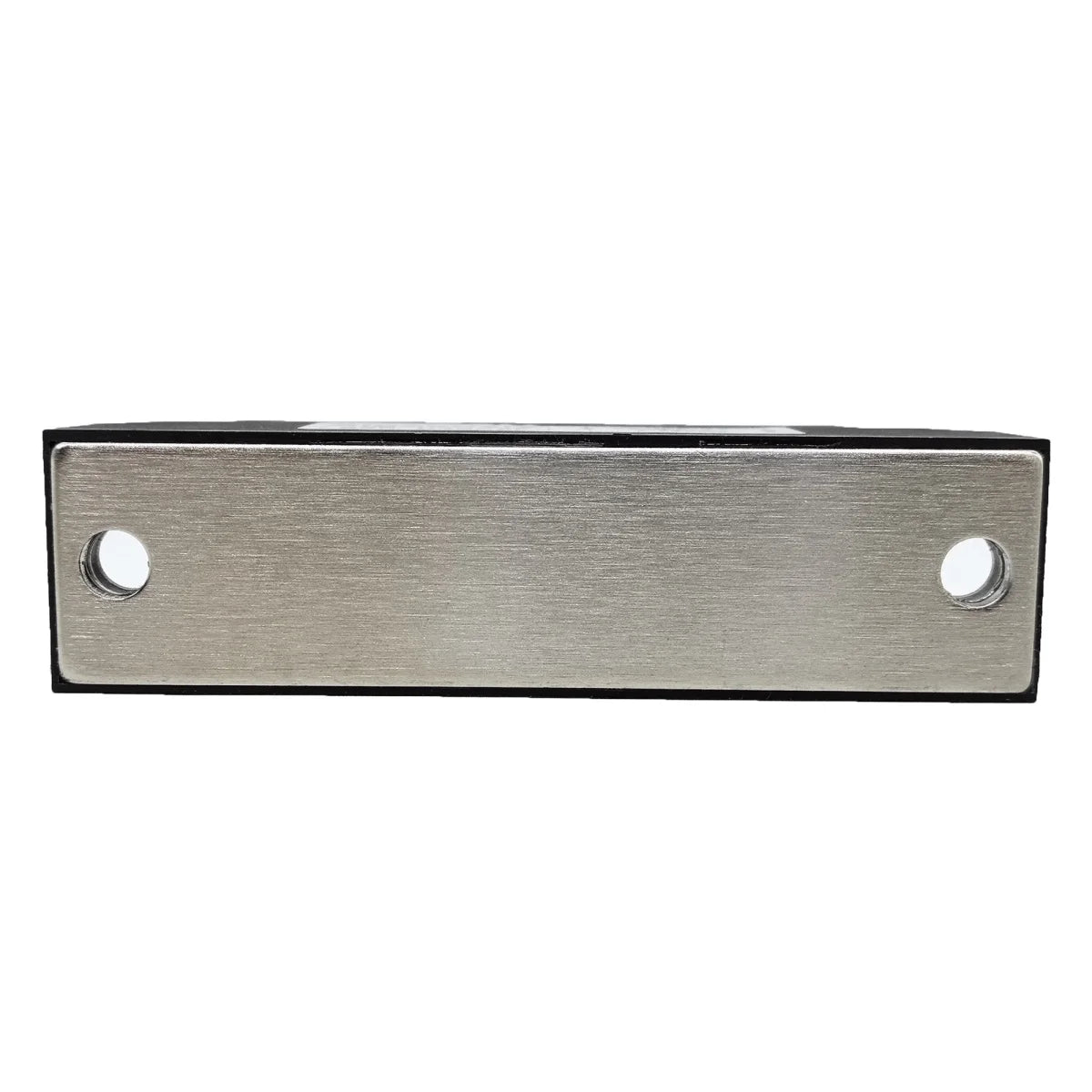

100A Industrial SSR High Power Solid State Relay DC/AC Heavy Duty Contactless Silent, No Spark

Industrial Grade Solid State Relay

H3120ZF H3100ZF H380ZF H360ZF Free

Protective Cover and Connection Cord

Industrial SSR H3120ZF H3100ZF H380ZF H360ZFDC to AC

Load Current: 60-120A

Input Voltage: 4-24VDC

Max Input Current: 12mA

Must Operation Voltage: 2.8VDC

Must Release Voltage: 1.5VDC

Output Voltage: 48-480VAC

Peak Voltage: 800V

Operation Temperature: -30℃ to 60℃

Max off-state leakage current: ≤2mA

Max on-state voltage drop: ≤1.5V

On-Off Time: ≤10ms

Insulation Resistance: 1000MΩ

Certificates CE

Help with Product Selection

How to select the appropriate model?

First judge the nature of the load

For resistive load (such as tempering furnace heating wire, electric furnace, bulb, etc.)

3 times of allowance shall be reserved.

For example, if the actual heating current is 100AH3300ZF300Ashould be selected for solid stateuse.

Inductive load (mainly motor), 5-7 times reserved

For example, when the actual current of the motor is 100A, at least 500A and above solid state should be selected.

Second choose the matching heat sink

Solid state relays are semiconductor devices, which generate a lot of heat during operation and need to dissipate the heat in time, so choose the right heat sink to prolong the service life of the product.
