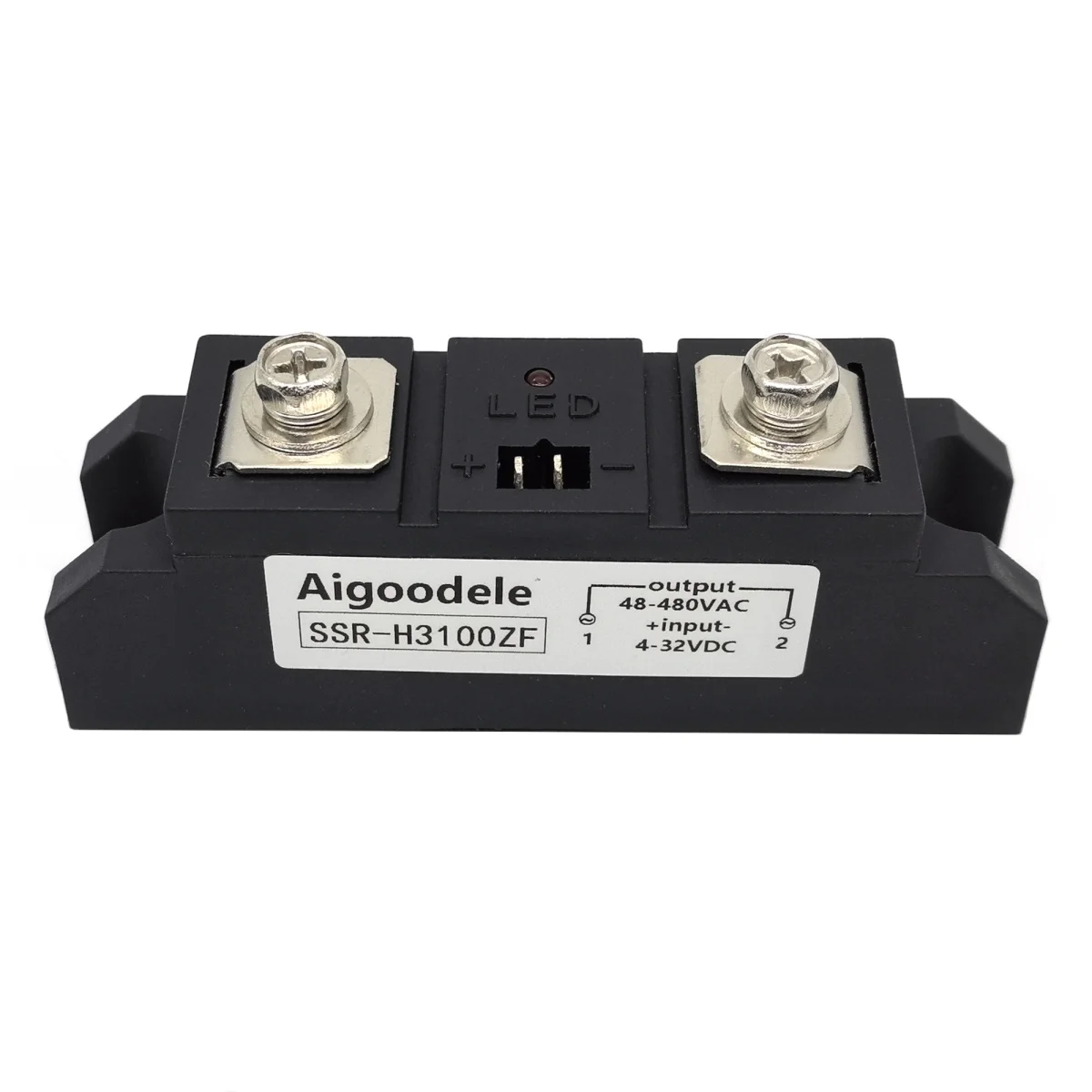

120A Industrial SSR High Power Solid State Relay DC/AC Heavy Duty Contactless Silent, No Spark
120A Industrial SSR High Power Solid State Relay DC/AC Heavy Duty Contactless Silent, No Spark
Couldn't load pickup availability
Industrial Grade Solid State Relay
H3120ZF H3100ZF H380ZF H360ZF Free

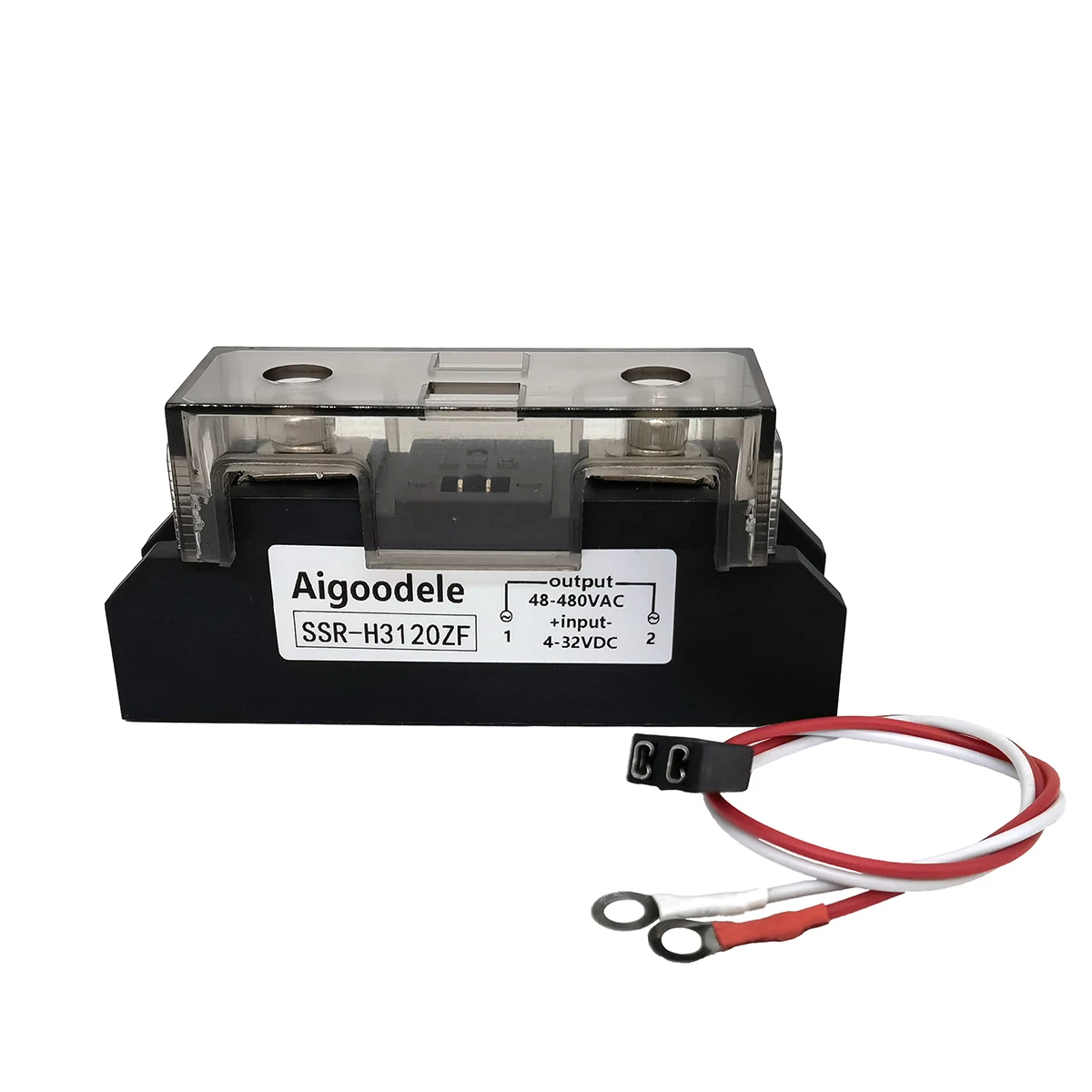

Protective Cover and Connection Cord

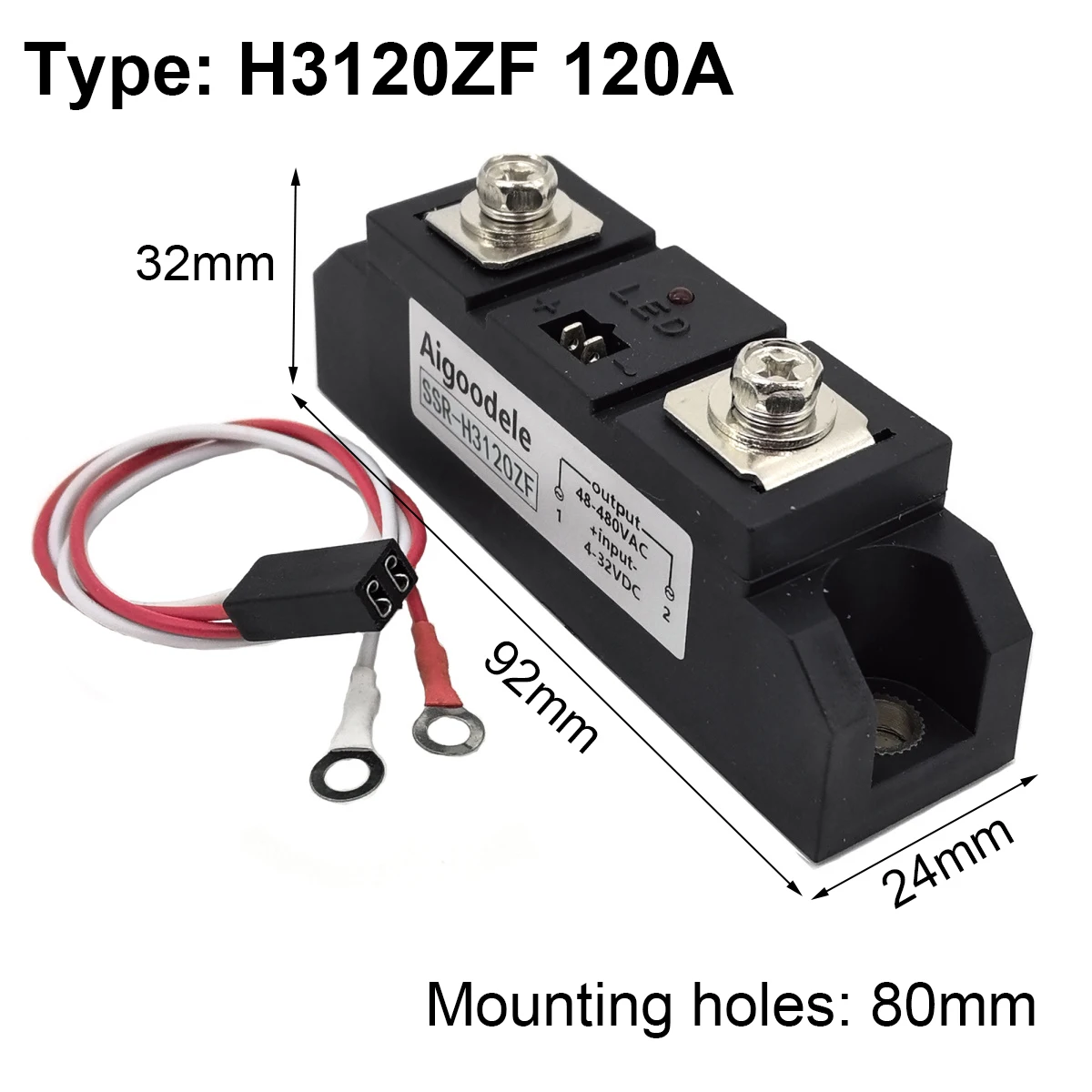

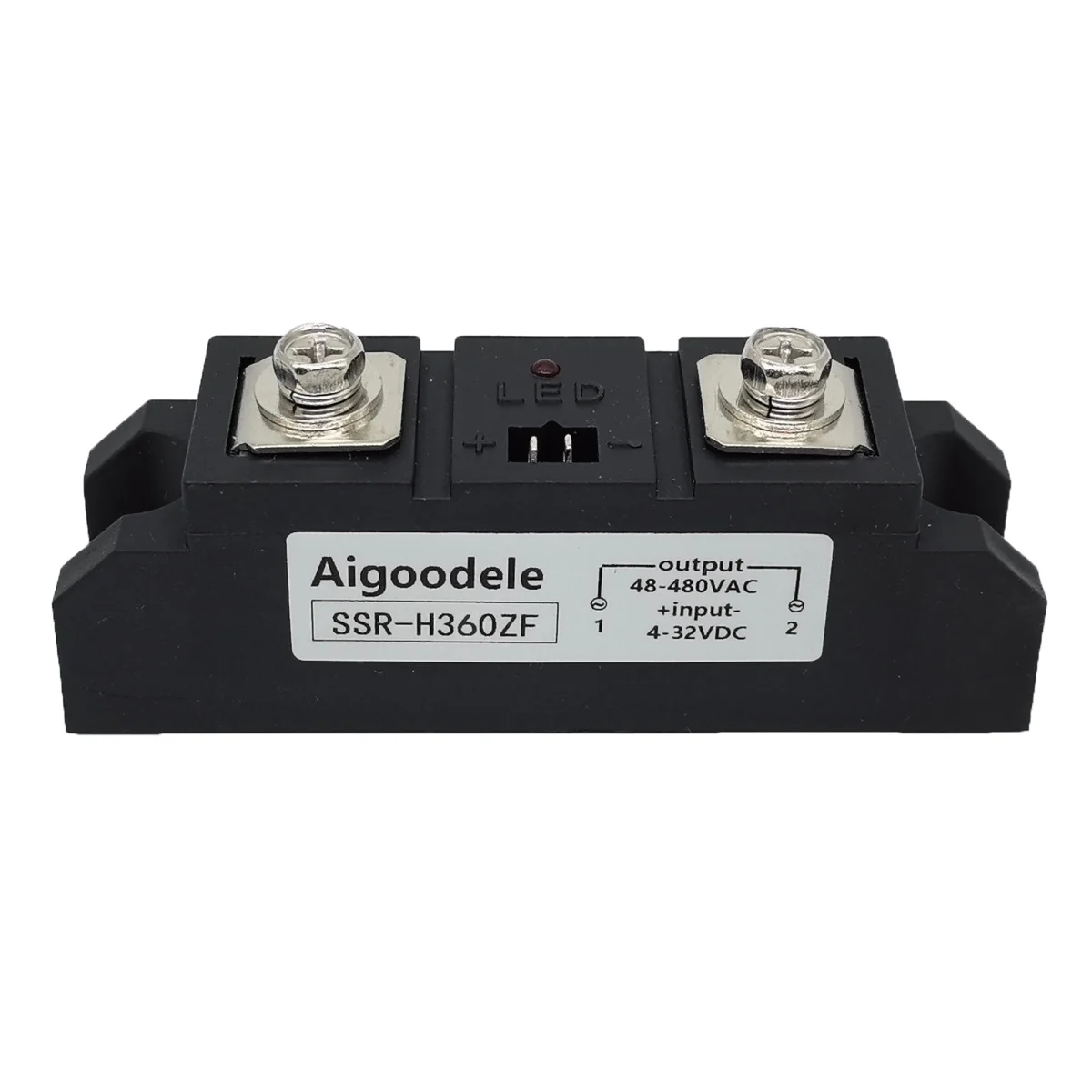

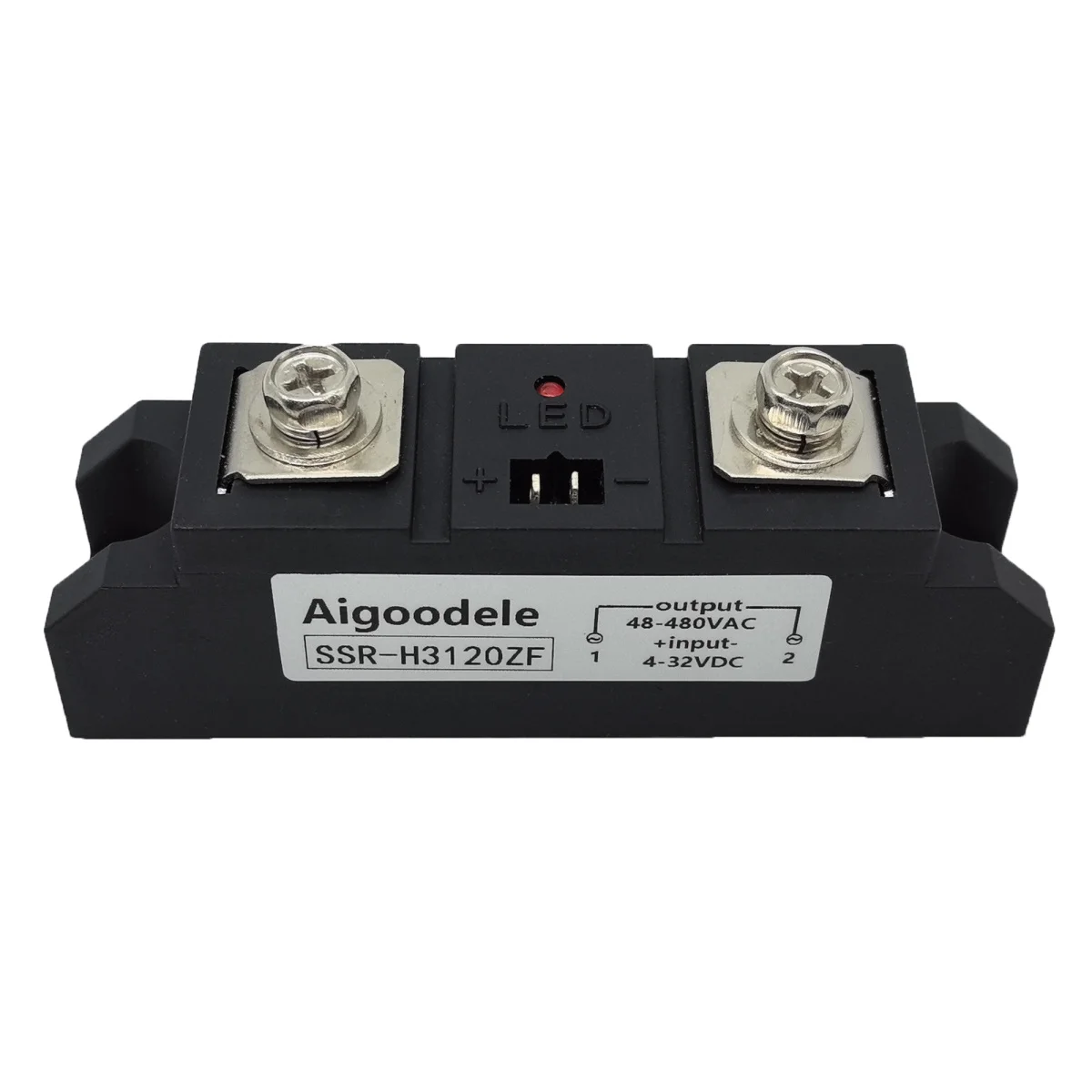

Industrial SSR H3120ZF H3100ZF H380ZF H360ZFDC to AC
Load Current: 60-120A
Input Voltage: 4-24VDC
Max Input Current: 12mA
Must Operation Voltage: 2.8VDC
Must Release Voltage: 1.5VDC
Output Voltage: 48-480VAC
Peak Voltage: 800V
Operation Temperature: -30℃ to 60℃
Max off-state leakage current: ≤2mA
Max on-state voltage drop: ≤1.5V
On-Off Time: ≤10ms
Insulation Resistance: 1000MΩ
Certificates CE
Features

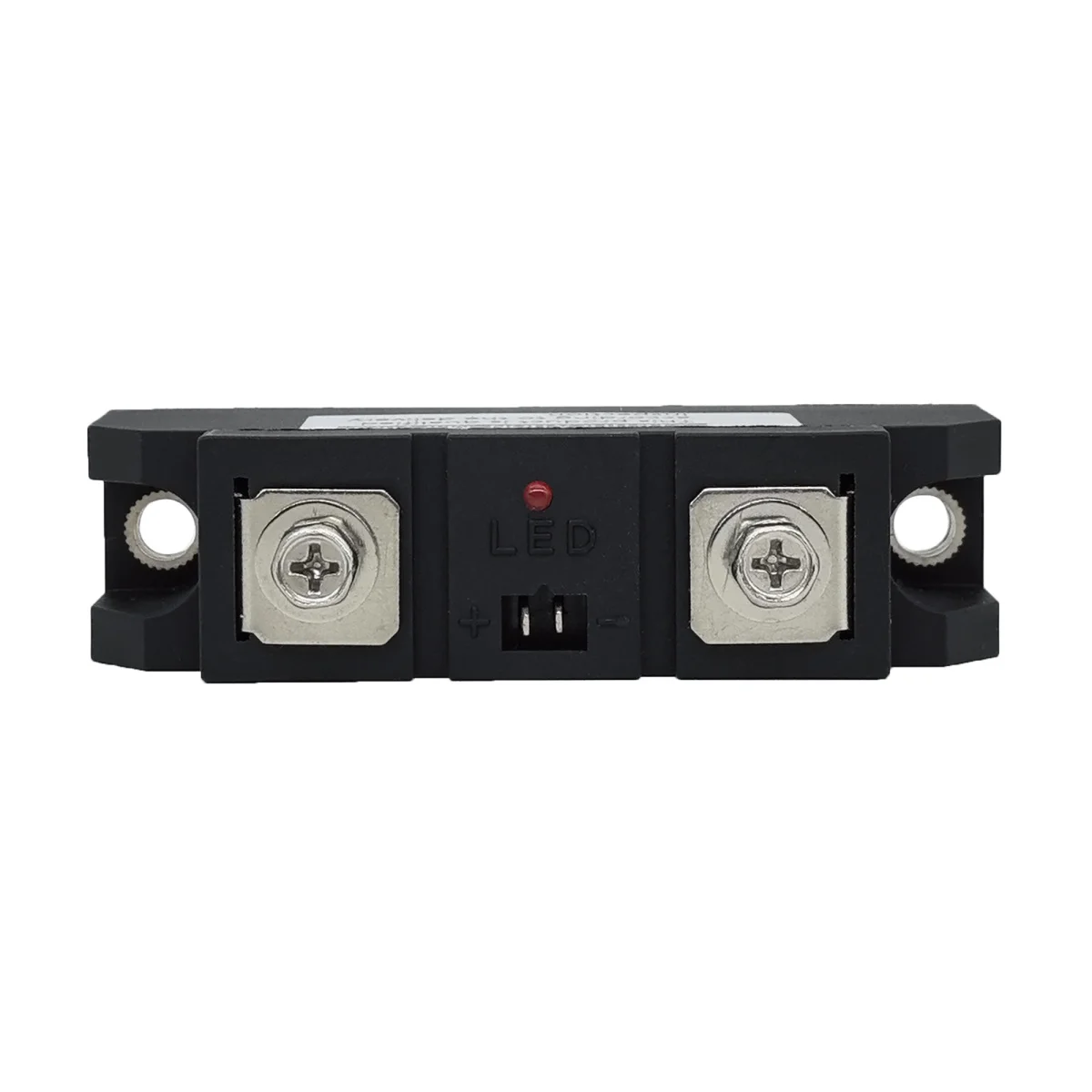

1.With LED indicator.
2.The default is zero cross SSR.Random turn-on needs to be customized.
Precautions
1.When choosing a SSR,please notice the actual load current and working ambient temperature.
2.Apply heat-radiation silicon grease of a heat conductive sheet between the SSR and heat sink.
3.Tighten the ssr terminal screws properly.
4.Please do not use the relay beyond the descriptions in the data sheet.
Help with Product Selection
How to select the appropriate model?
First judge the nature of the load
For resistive load (such as tempering furnace heating wire, electric furnace, bulb, etc.)
3 times of allowance shall be reserved.
For example, if the actual heating current is 100AH3300ZF300Ashould be selected for solid stateuse.
Inductive load (mainly motor), 5-7 times reserved
For example, when the actual current of the motor is 100A, at least 500A and above solid state should be selected.
Second choose the matching heat sink
Solid state relays are semiconductor devices, which generate a lot of heat during operation and need to dissipate the heat in time, so choose the right heat sink to prolong the service life of the product.
