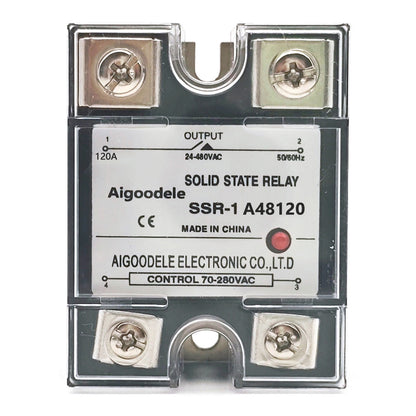

AC-AC SSR 120A 1-Phase Solid State Relay, Input AC 70-280V, Output AC 24-480V

Product :Three-Phase Solid State Relay

Model : SSR-1 A4810 A4825 A4840 A4860 A4880 A48100 A48120

Current : 10A 25A 40A 60A 80A 100A 120A

Control mode : AC control AC

Control voltage : 70-280VAC

Load voltage : 24-480VAC

Step 1: Choose a correct control Mode
AA- AC Control AC

Step 2: Choose a correct type
Current of Equipment/Ratio = Current of SSR
PS: The Ratio depend on the kind of your loading equipment.
Resistive load :70%, Inductive load:20%,Capacitive load：10%.

Step 3: Choose a suitable heat sink
During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.

Notice:
The inside of the solid-state relay is a semiconductor. A semiconductor switch is a non-physical contact switch. if use a multimeter diode or resistor to test ,it always show a high-impedance state, (multimeter light red).
According to the conventional detection methods of solid state relays: a load is required to test the switching state. Using an incandescent lamp as a dummy load is an obvious way to test continuity.
