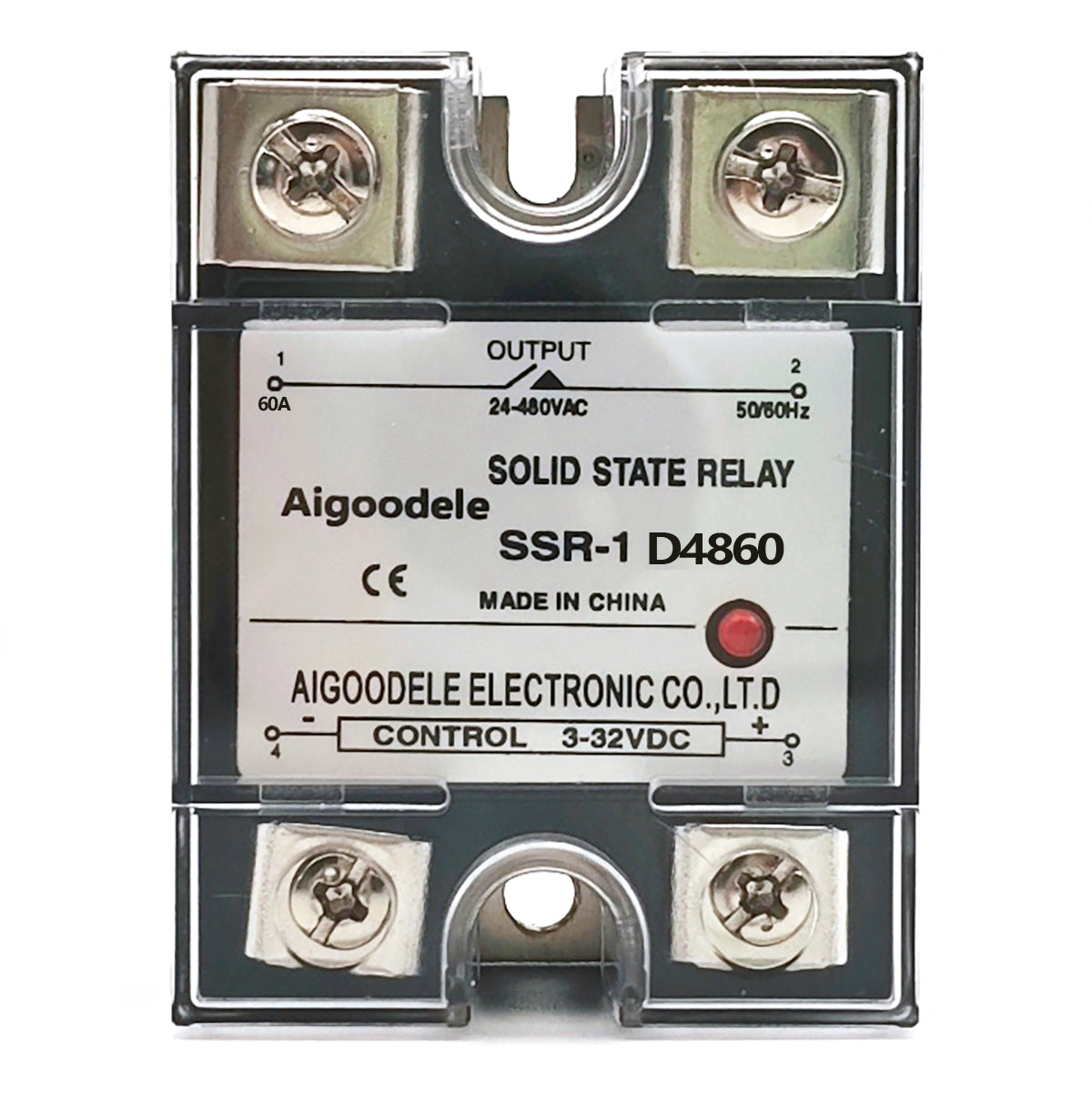

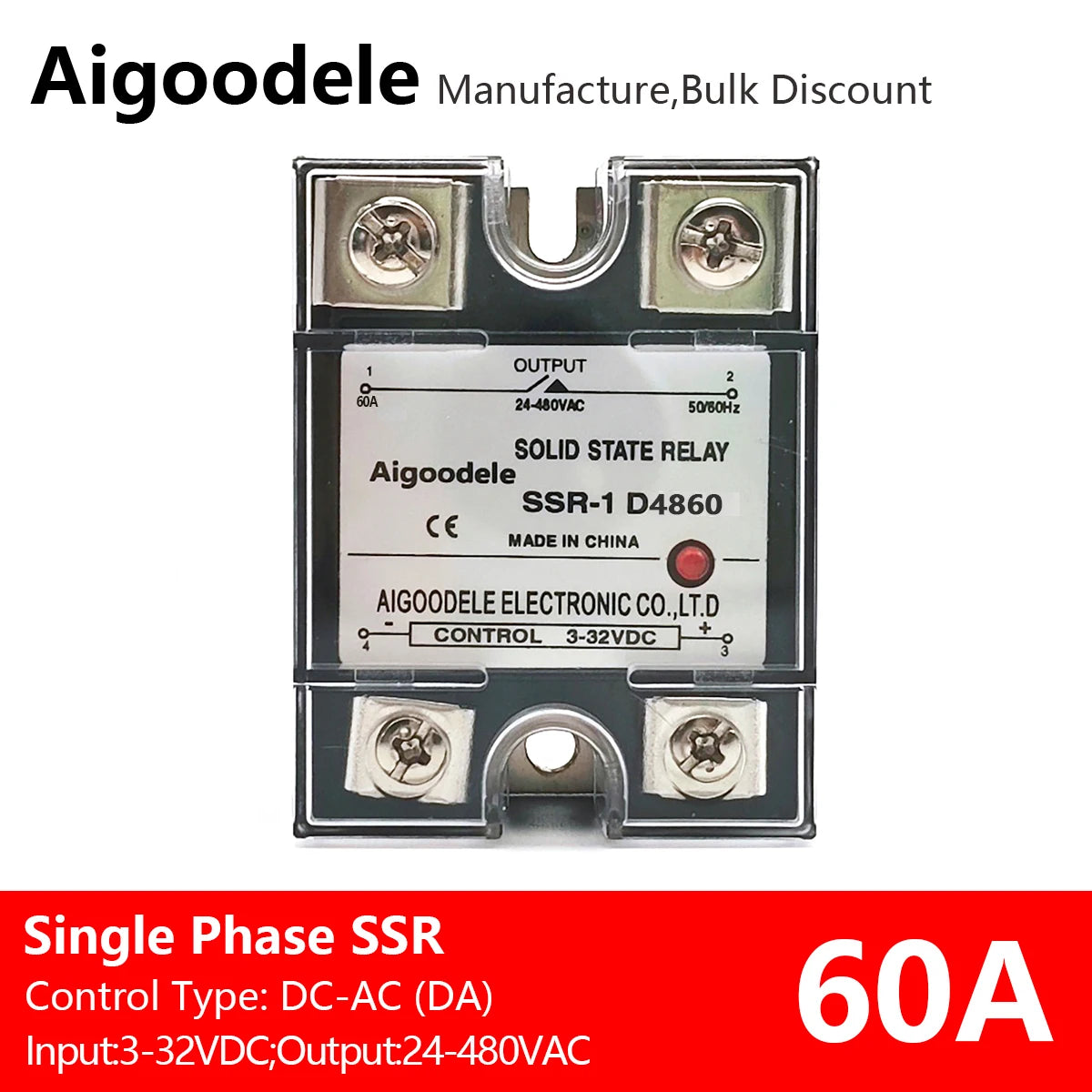

DC-AC SSR 60A 1-Phase Solid State Relay, Input DC 3-32V, Output AC 24-480V

Product :Three-Phase Solid State Relay

Model:SSR-1D4810 D4825 D4840 D4860 D4880 D48100 D48120

Current:10A25A40A60A80A100A120A

Controlmode : DC control AC

Controlvoltage :3-32VDC

Load voltage :24-480VAC

Step 1: Choose a correct control Mode
DA- DC Control AC

Step 2: Choose a correct type
Current of Equipment/Ratio = Current of SSR
PS: The Ratio depend on the kind of your loading equipment.
Resistive load :70%, Inductive load:20%,Capacitive load：10%.

Step 3: Choose a suitable heat sink
During the useage of SSR, it will give out a lot of heat, so in order to extend the life of your SSR, please install a heat sink , also if the current is over 60A,the cooling fan also required.

Notice:
The inside of the solid-state relay is a semiconductor. A semiconductor switch is a non-physical contact switch. if use a multimeter diode or resistor to test ,it always show a high-impedance state, (multimeter light red).
According to the conventional detection methods of solid state relays: a load is required to test the switching state. Using an incandescent lamp as a dummy load is an obvious way to test continuity.
