Diode Stud 6A 12A 16A 25A DO4, HF Positive, HFR Negative, Battery Charging Blocking Diode

Specification:
Product Type: Rectifier Diode

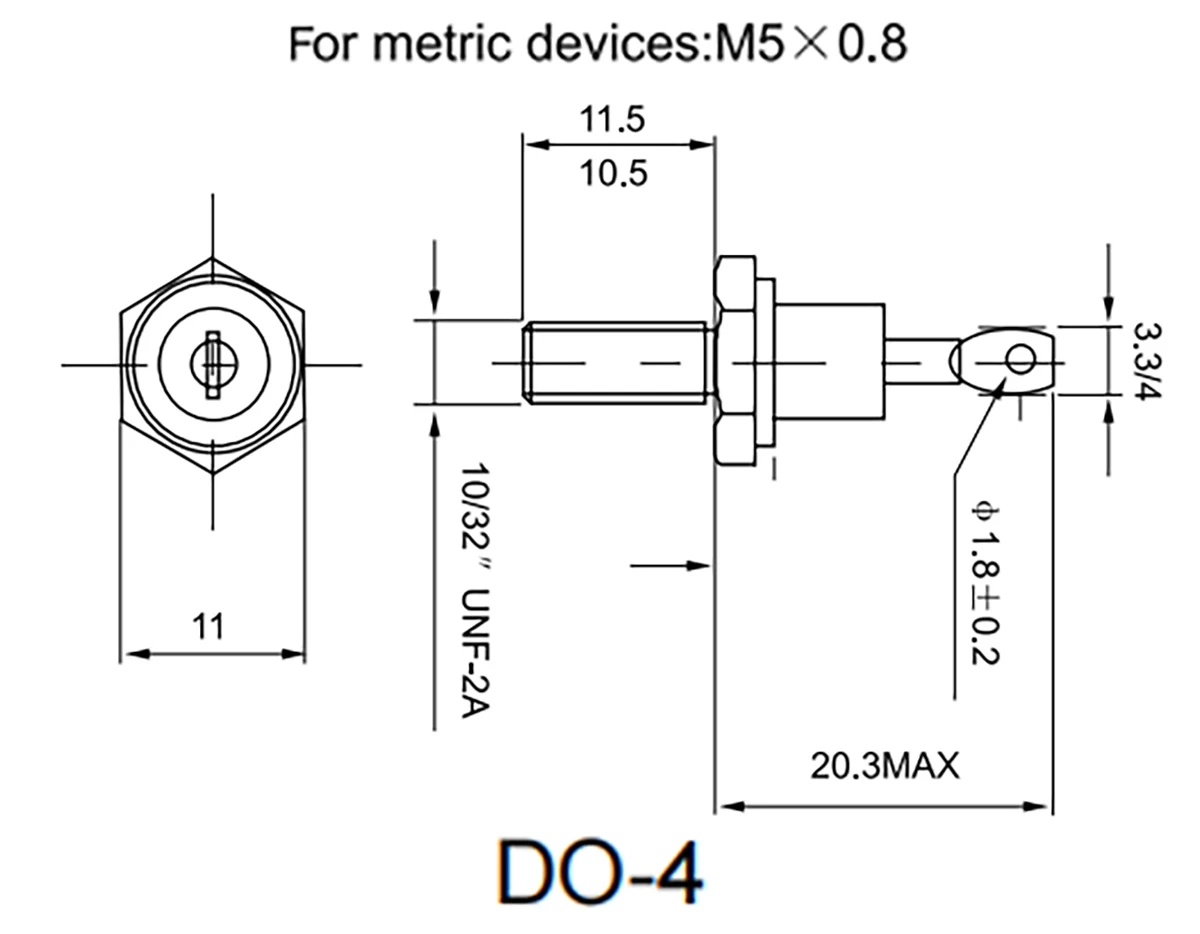

Size: as shown in the picture
Model: 6HF 120, 6HFR 120, 12HF 120, 12HFR 120, 16HF 120, 16HFR 120, 25HF 120, 25HFR 120(optional)

Description

Report Item / Suspicious Activity

Features:
* Brand new and high quality
* Made of high quality materials, durable
* High surge current capability.
* Stud cathode and stud anode versions.
* Wide current range.
* Easy to install, easy to use and maintain.
* 25A/16A/12A/6A 1200V positive/negative stud mount diode rectifier.
* Suitable for battery charging, converters, power supplies, machine tool controls, welding machines, and motor controls.

positive electrode:
25HF 120, 1200V 25A, positive pole  DO4-25HF
16HF 120, 1200V 16A, positive pole  DO4-16HF

12HF 120, 1200V 12A, positive pole  DO4-12HF
6HF   120, 1200V 6A,   positive pole  DO4-6HF


negative electrode:
25HFR 120, 1200V 25A, negative pole  DO4-25HFR
16HFR 120, 1200V 16A, negative pole  DO4-16HFR

12HFR 120, 1200V 12A, negative pole  DO4-12HFR
6HFR   120, 1200V 6A,   negative pole  DO4-6HFR

Package Included:
1 x stud diode rectifier with

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
