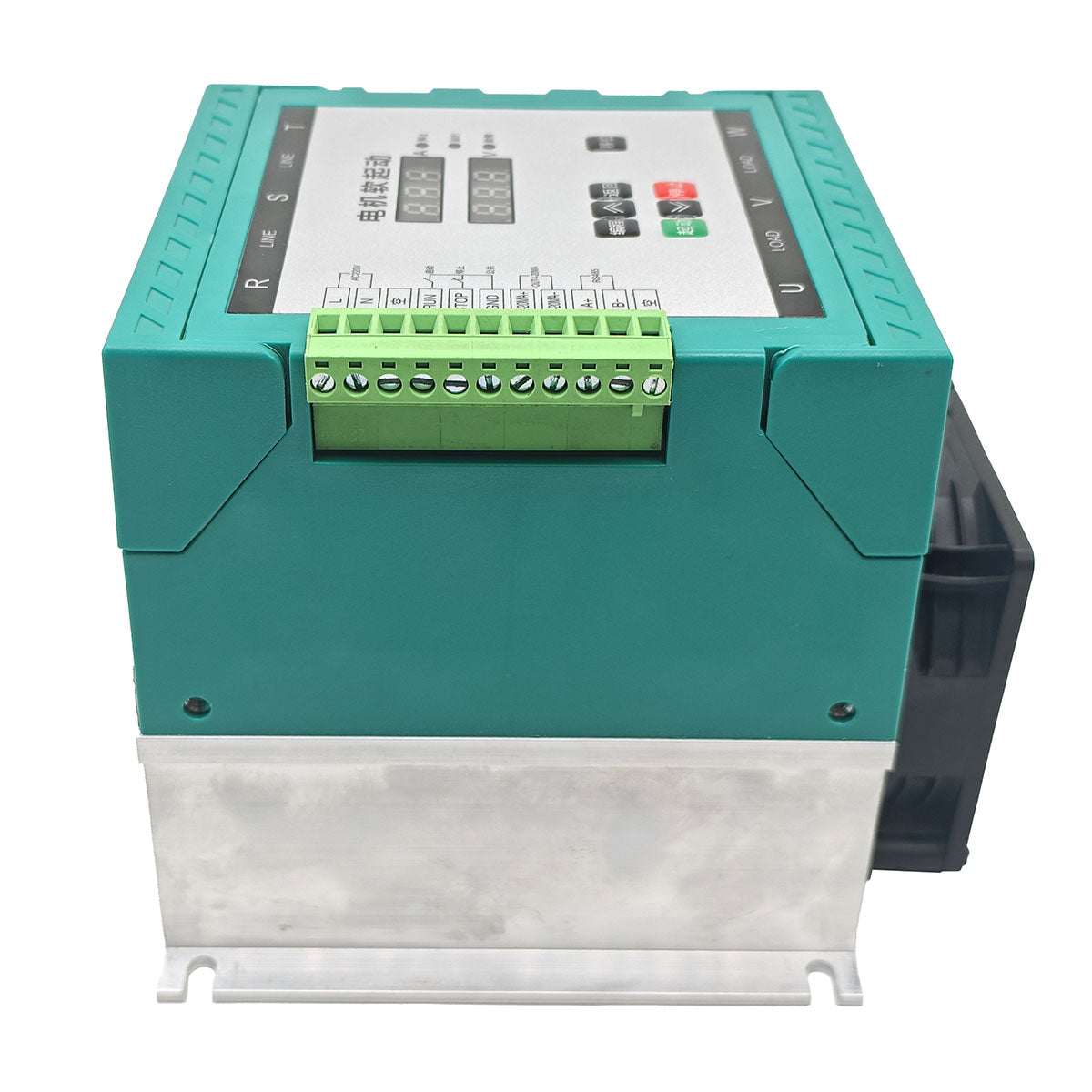

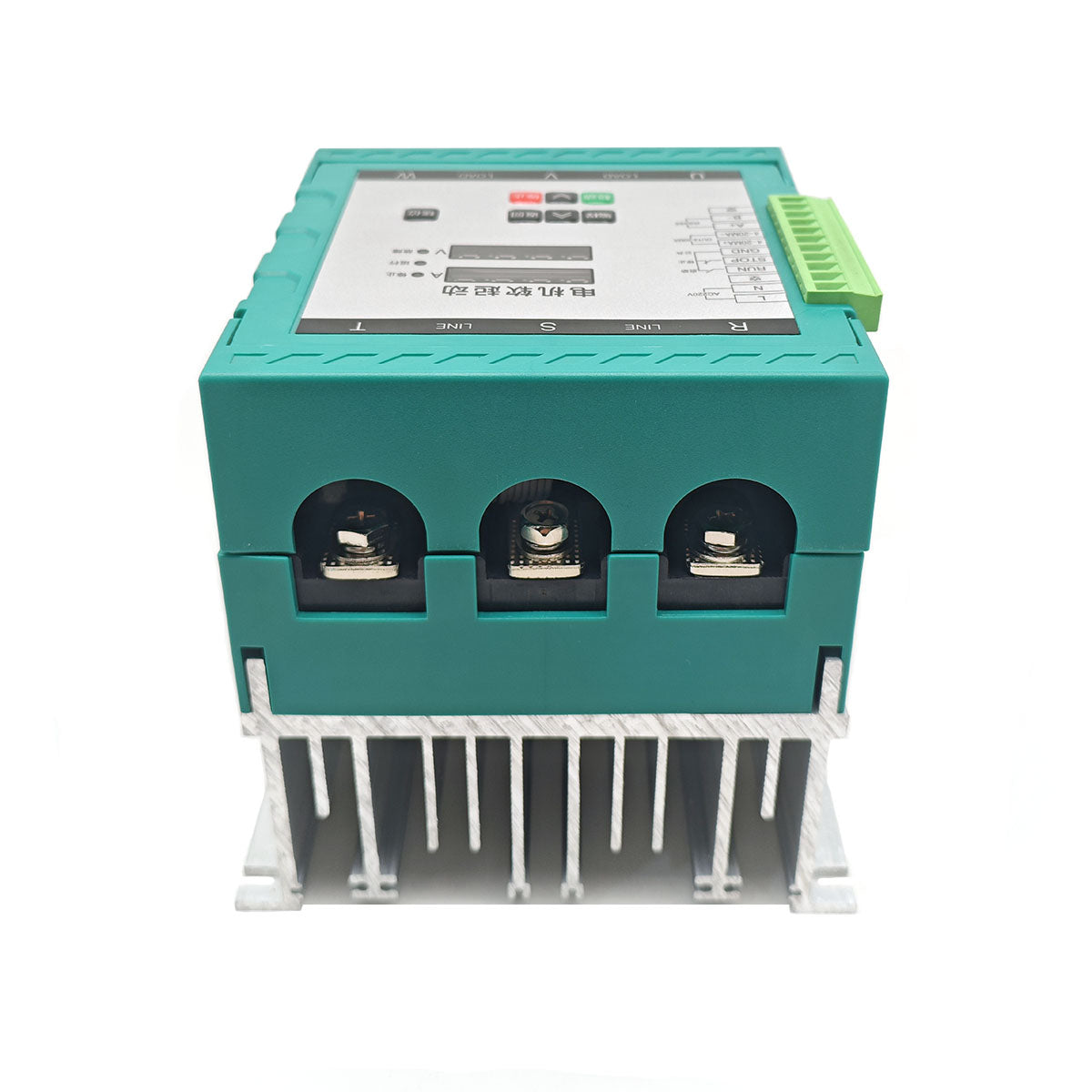

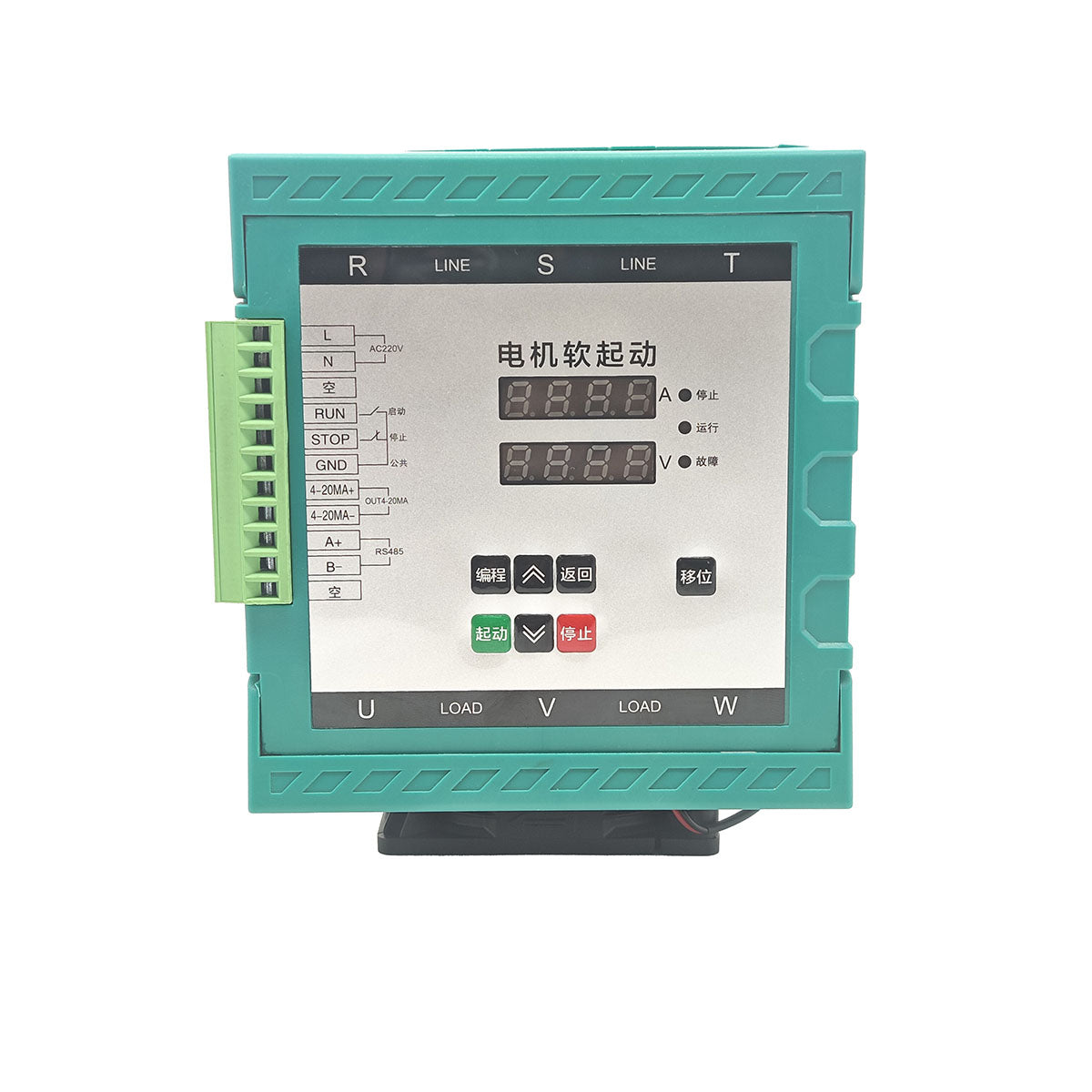

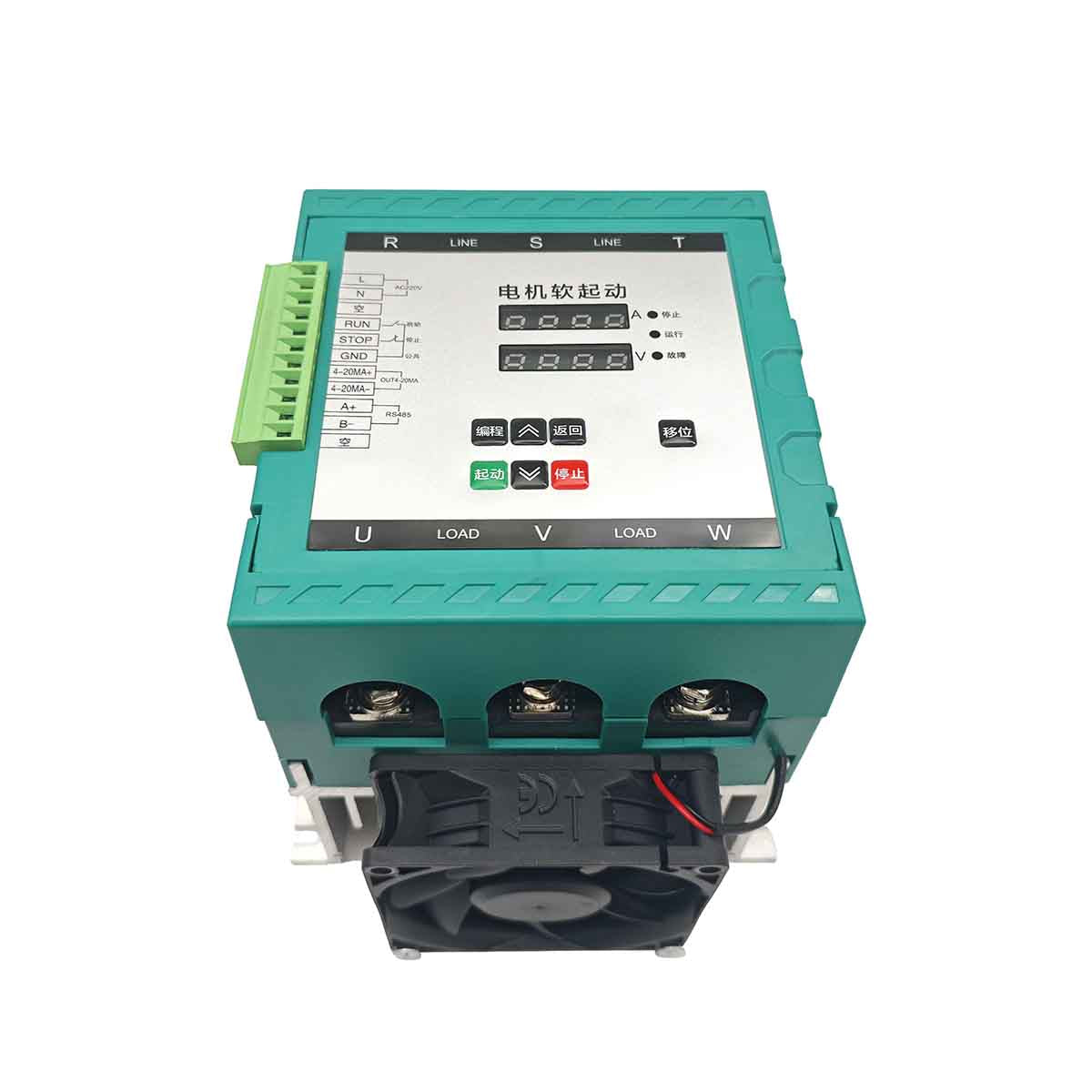

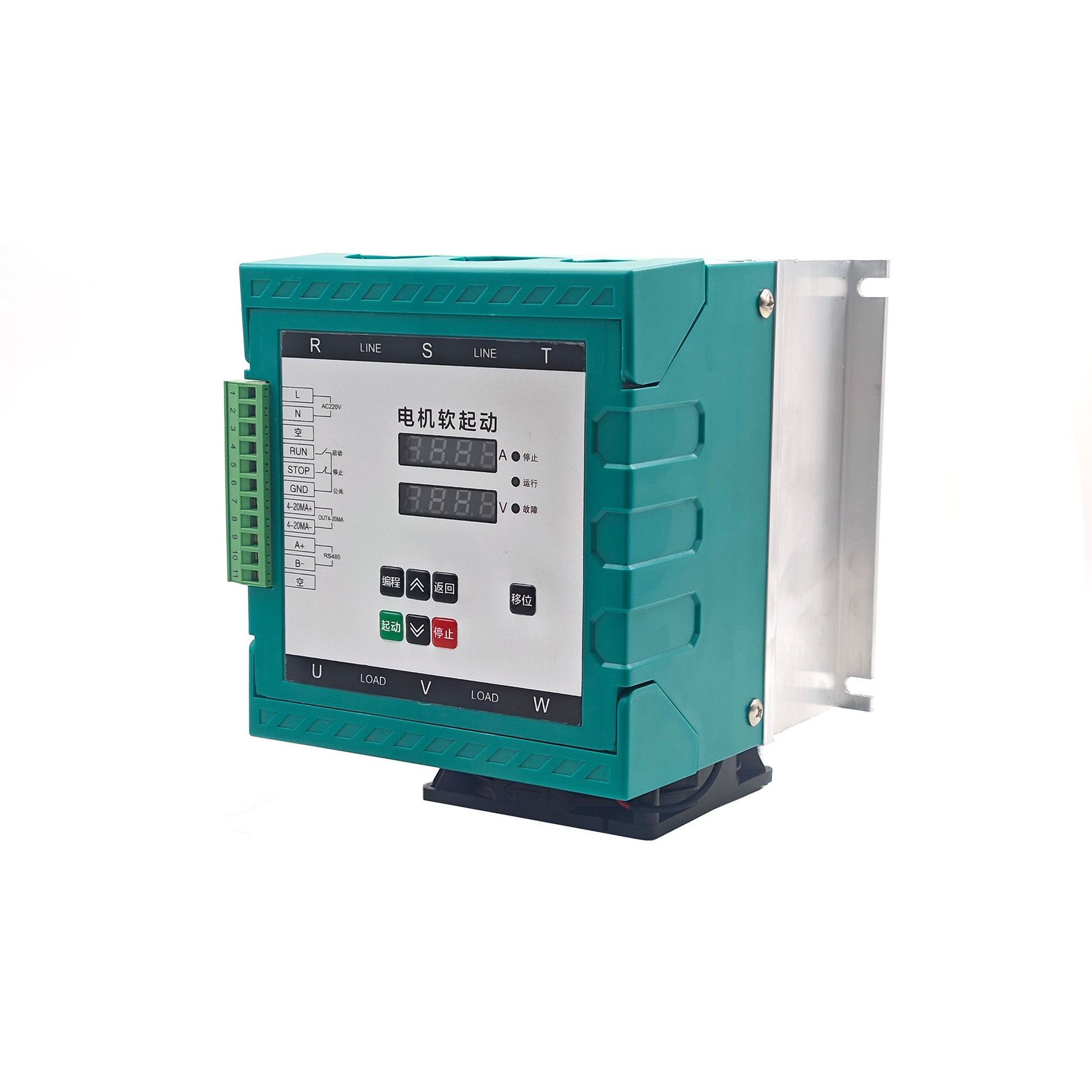

SKU:

AVH10-G-5.5

$126.00

Free Shipping
Quantity

  • Description

  • Documents

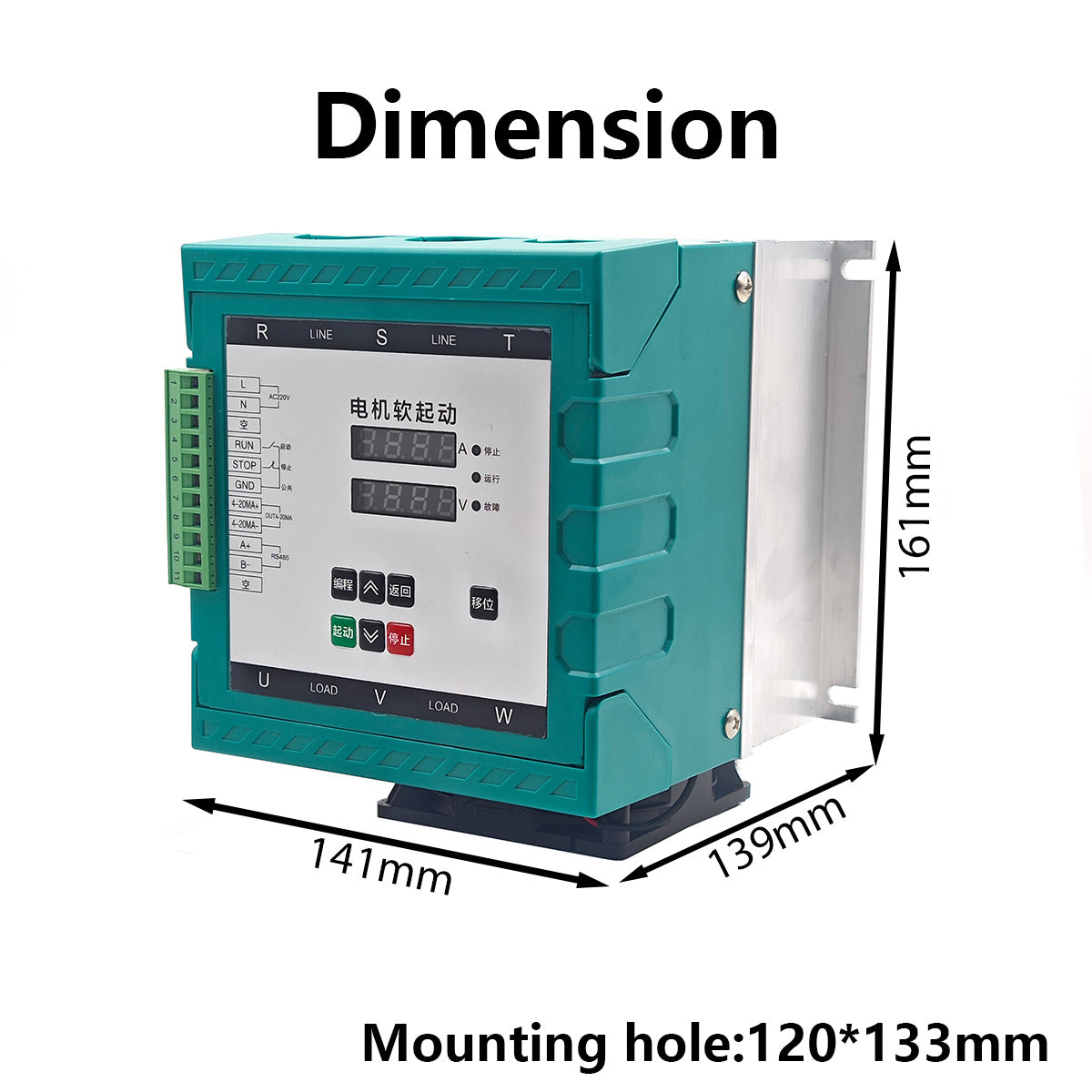

The AVH10-G series 3-phase motor soft starter is a compact and efficient solution designed for small to medium-power motors (5.5kW–37kW), eliminating the need for an external contactor to simplify installation. Its space-saving design reduces shipping costs while advanced electronic control ensures smooth, surge-free starts—protecting motors from excessive heat and mechanical stress. Ideal for compressors, conveyors, pumps, and fans, it reliably replaces traditional star-delta and auto-transformer starters across industries like power generation, mining, and construction. By enabling gradual acceleration, it prevents belt slippage, material spillage, and equipment wear, making it a cost-effective upgrade for both performance and longevity.



Input Power Supply Input Voltage Three-phase 380V ± 15%
Frequency 50/60Hz
Adaptive Motor Squirrel-cage three-phase asynchronous motor
Starting Times It is recommended not to exceed 20 times per hour.
Control Mode 1) Operation panel control;
2) Operation panel + external control;
3) External control;
4) External control + COM control;
5) Operation panel + external + COM control;
6) Operation panel + COM control;
7) COM control;
8) No start or stop operation.
Start Mode 1) Current-limiting start;
2) Voltage ramp start;
3) Kick start + current-limiting start;
4) Kick start + voltage ramp start;
5) Current ramp start;
6) Voltage current-limiting double closed-loop start.
Stop Mode 1) Soft stop;
2) Free stop.
Protective Function 1 Open loop protection for external instantaneous stop terminals;
2) Over-heat protection for soft starter;
3) Protection for too long starting time;
4) Input open phase protection;
5) Output open phase protection;
6) Unbalanced three-phase protection;
7) starting over current protection;
8) Running overload protection;
9) Under voltage protection for power voltage;
10) Over voltage protection for power voltage;
11) Protectionfor fault parameter setting;
12) Load short circuit protection;
13) Auto restart or incorrect wiring protection;
14) Incorrect wiring protection of external control stop terminals.
Ambient Place to be used Indoor location with good ventilation free from corrosive gas and conductivedust.
Altitude Below 3000M. It have to rise the rate power when the altitude is more than 3000M.
Ambient
Temperature
-30~+55 C
Ambient Humidity ≤90%RH without dew condensation.
Vibration <0.5G
Structure Protection Class IP20
Cooling Pattern Natural wind cooling.


Applications

Pump: make use of soft stop function to relieve the influence of water hammer so as to save system maintenance cost.Ball mill: make use of voltage ramp startup to reduce gear torque friction so as to save cost and time.


Fan: reduce belt friction and mechanical conflict to save maintenance cost.


Compressor: make use of current limitation function to realize smooth startup so as to reduce motor heating and prolong its service life.


Conveyor: make use of soft start to realize smooth and gradual startup process in order to avoid product move and liquid overflow.


Others: Electric motor / Water storage / Ventilator / Food mixer / Air compressor / Conveyors / Stone crusher / Pulverizer / Heavy-duty machinery and equipment


Program Settings

No. Function Setting range Default
value		 Permission Mod
bus
address
F00 Control mode 0: Keyboard control
1 : External control
2: Communication control
3:Keypad + external control
4: Keyboard ten
communication
5: external control ten
communication
6: Keyboard 10
communication + external
control		 1 : External
control		 Read-write 0
F01 Starting mode 0: Voltage ramp start
1 : Current limiting start		 0: Voltage
ramp start		 Read-write 1
F02 Starting current limit value 50%~600% 3 Read-write 2
F03 Percentage of starting voltage 30%~80% 0.3 read-only 3
F04 Starting time 1s~120s 10S read-only 4
F05 Soft stop time Os~60s 0S Read-write 5
F06 Starting overcurrent protection current 50%-601%
601%indicates closure		 5 Read-write 6
F07 Starting overcurrent protection time 0~120s 2s Read-write 7
F08 Running overcurrent protection current 50%-601%
601%indicates closure		 2 Read-write 8
F09 Running overcurrent protection time 0~999s 2s Read-write 9
F10 Undercurrent protection current 10%~100%
100% indicates closure		 0.5 Read-write 10
F11 Undercurrent protection time 0~120s 5s Read-write 11
F12 Unbalance degree 20%~100%
100% indicates closure		 0.4 Read-write 12
F13 Unbalance protection time 0~120s 5s Read-write 13
F14 Overvoltage protection multiplier 100%~140%
100% indicates closure		 1.2 Read-write 14
F15 Overvoltage protection time 0~120s 5s Read-write 15
Undervoltage protection times 50%-100%
100%indicates closure		 0.8 Read-write 16
F17 Undervoltage protection time 0~120s 5s Read-write 17
F22 Motor rated current 1~500A 30A Read-write 20
F23 Address 1~64 1 Read-write 21
F24 Baud rate 0: 2400
1: 4800
2: 9600
3:19200		 2: 9600 Read-write 22
F25 Software version read-only 23
U0 Main control software version read-only 100
U1 Soft start status 0: Standby
1 : Soft Start
2: Run
3: Soft Stop
5: Fault		 101
U2 Current Fault 0: No fault
1 : Input phase loss
2: Output phase loss
3: Starting overcurrent
4: Running overcurrent
5: Undercurrent
6: Current unbalance
7: Phase sequence
protection
8: Soft start overheat
protection		 102
U3 Average Output Current 103
U4 Input Voltage 104
U5 A-phase current 105
U6 B-phase current 106
U7 C-phase current 107
U8 Three-phase unbalance 108
U9 Power Supply Phase Sequence 109
U10 Soft start temperature switch status 110
U11 Percentage of Starting Completion 111
First fault record 200
Second fault record 201
Third fault record 202
Fourth fault record 203
Fifth failure record 204
Sixth failure record 205
Seventh failure record 206
Eighth failure record 207
Ninth failure record 208
Tenth failure record 209
Eleventh failure record 210
Twelfth failure record 211
Start-stop order 0x0001 start
0x0002 stop
0x0003 Fault reset
0x0030 Restore factory
values
0x0031 Clear Fault		 300


Manual for AVH10-G Series Soft Starters.pdf
