Effective Soft Start Solution

AC Power → Starter → Electric Motor
Title

Easily install between power and motor  to reduce starting current by 60% and prevent equipment damage – no complex wiring needed.

In-Line Soft Starters: Direct Power-to-Motor Protection

In-line soft starters provide reliable AC motor control by installing directly between power and motor, eliminating the need for bypass contactors. These units deliver continuous protection from startup through operation to shutdown, gradually applying voltage to:

✓ Reduce starting currents by up to 60%
✓ Prevent mechanical stress on belts and gears
✓ Extend motor lifespan 2-3X

Space-saving and economical, our in-line starters are ideal for:

• Panel space savings - 30% smaller than bypass starters
• High cycling capacity - Rated for 50+ starts/hour
• Cost efficiency - No bypass contactor required
• Wide voltage range - 220V/380V/440V options
• Thermal management - Natural cooling (≤55kW) / Forced air (>55kW)
• Easy retrofitting - Compatible with existing motor controls

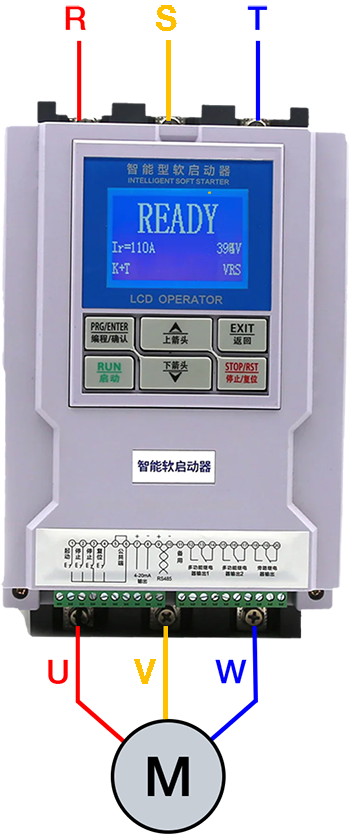

In-line Soft Start
Wiring Diagram

Explore In-Line Starters:

AVH10-G Series

Digital tube display | Click to filter

ASF6K Series

Filter by Voltage: 220V | 380V | 440V

AVH100 Series

LCD display | Click to filter

Where to Use

Crushers

Kick-start mode overcomes initial inertia while limiting current to 300% of rated

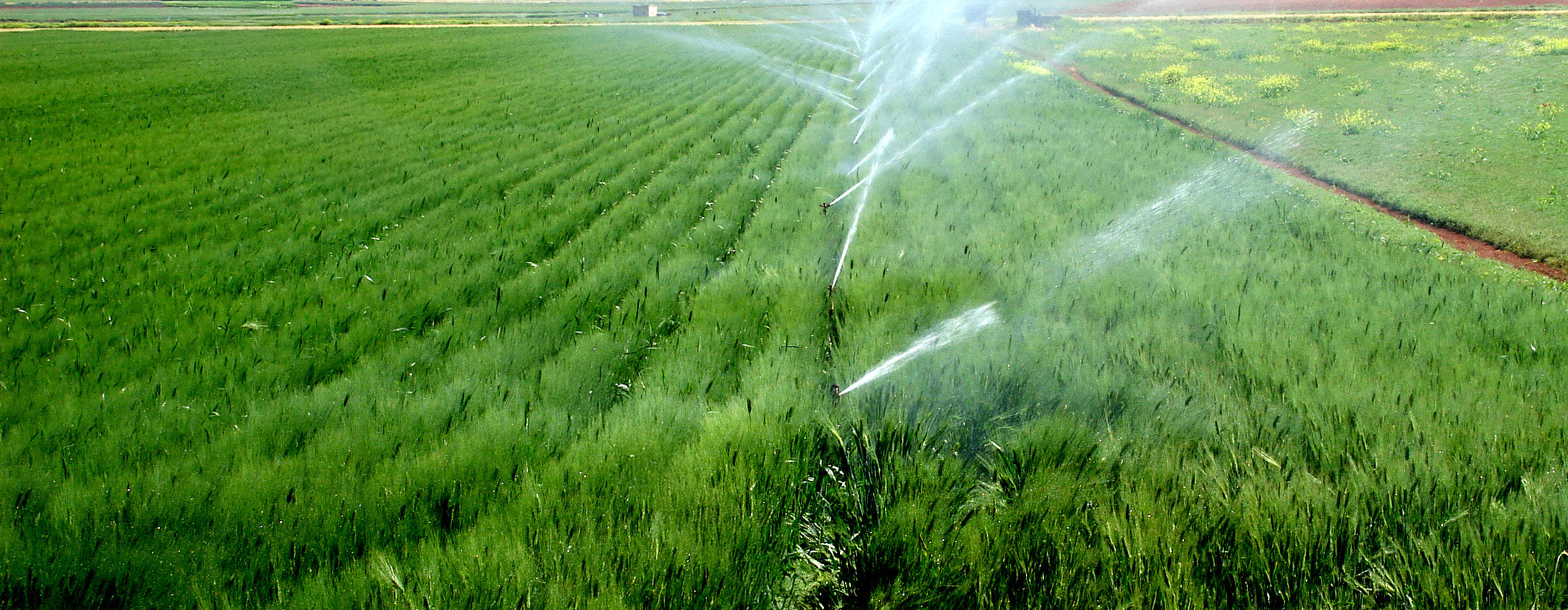

Irrigation Pumps

Compatible with generator power (handles ±15% voltage fluctuation)

Chillerrs

Eliminate lighting flicker caused by compressor startups in sensitive facilities

Conveyors

Torque-controlled acceleration prevents belt slippage (30% longer belt life)

Mixers

Washdown-ready starters for hygienic environments (NEMA 4X enclosures)

Extruders

Prevents material jams during staggered motor startups

Why Choose Our In-Line Soft Starters?

⚡ Simplified Installation

Intuitive terminal labeling

Clear markings for R/S/T (input) and U/V/W (output) connections

No external contactors

Saves panel space and eliminates contactor maintenance

🛡️ 360° Protection

Real-time monitoring
Continuous current/voltage/temperature tracking

Fault prevention

Phase loss, overload, and under-voltage protection

📊 Smart Optimization

6 adaptive start modes

Voltage ramp / Current limit / Kick start / etc.

Load-sensing technology
Auto-adjusts start curve for pumps vs. compressors

💰 Cost-Saving Advantages

Long-term savings

3X longer motor lifespan = fewer replacements

Low maintenance

Solid-state design with no moving parts

Unsure Which Soft Starter Fits Your Needs?

Let our technical experts guide you - contact us today for a free consultation and personalized solution recommendations!
