Tyristor Stud 10A 16A 25A TO48 Spiral SCR 1200V

Specification:
Product Type: control thyristor (Spiral)

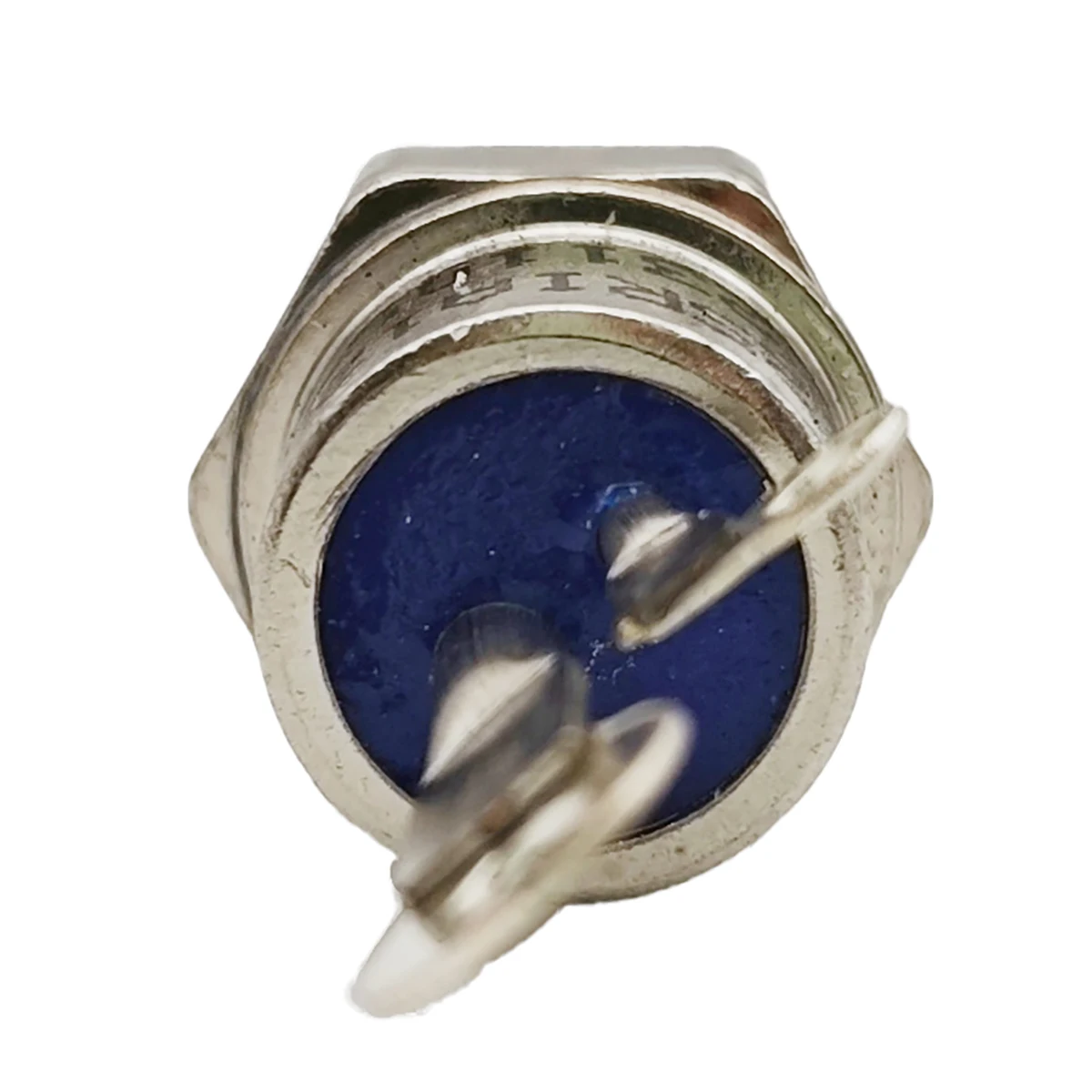

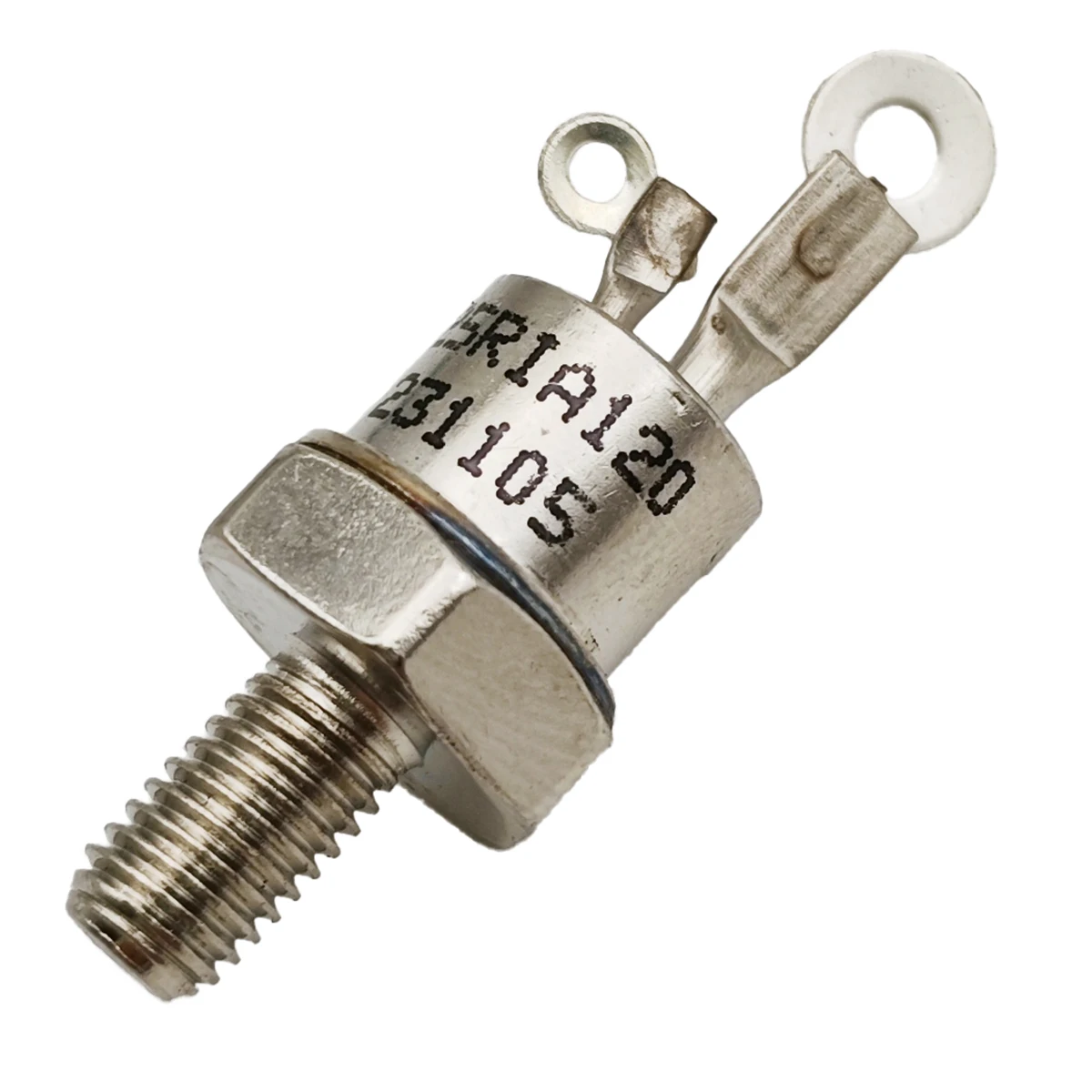

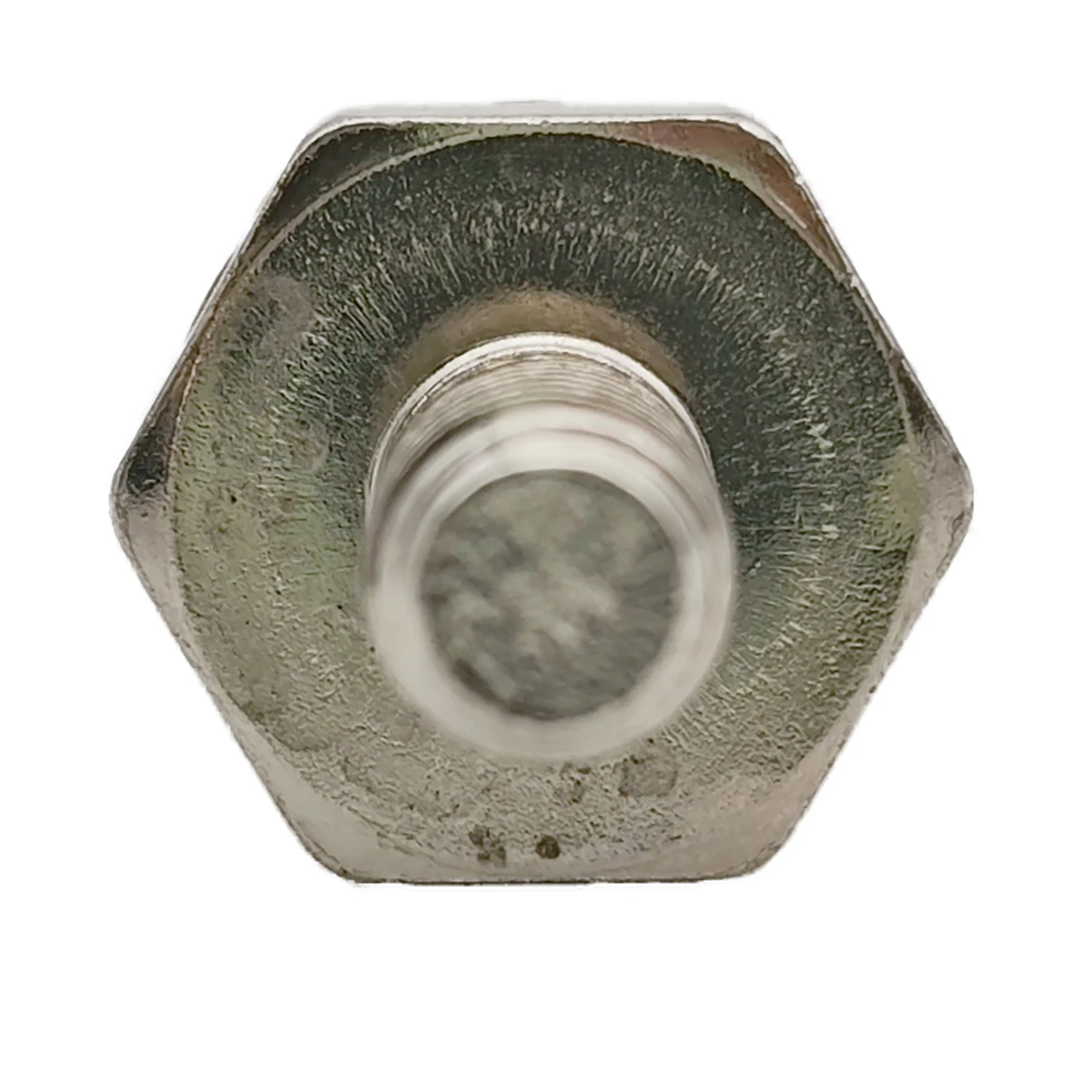

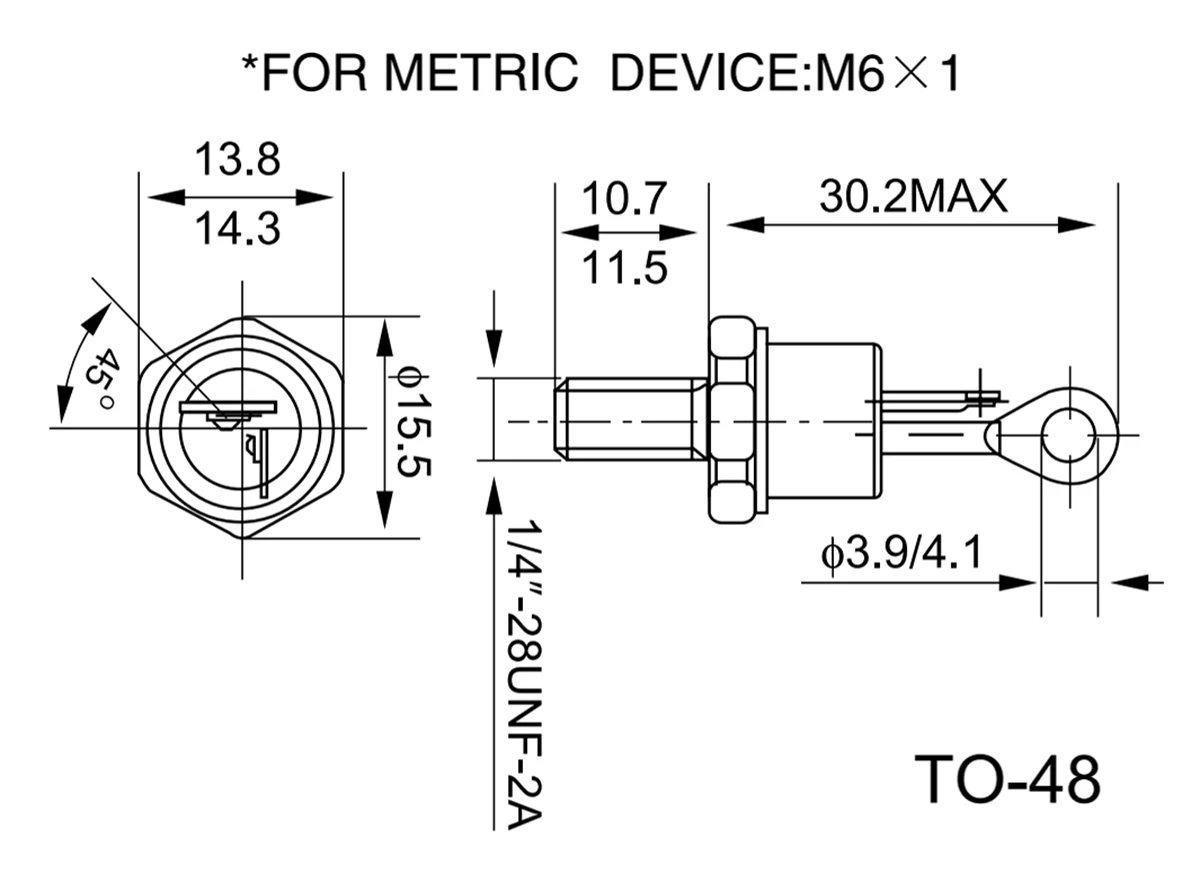

Size: as shown in the picture
Model: TO48-10RIA120  TO48-16RIA120  TO48-25RIA120  (optional)

Description

Report Item / Suspicious Activity

Features:
* Brand new and high quality
* Made of high quality materials, durable
* High surge current capability.
* Stud cathode and stud anode versions.
* Wide current range.
* Easy to install, easy to use and maintain.
* 10A/16A/25A 1200V control thyristor (Spiral).
* Suitable for battery charging, converters, power supplies, machine tool controls, welding machines, and motor controls.

10RIA 120, 1200V 10A,  TO48-10RIA
16RIA 120, 1200V 16A,  TO48-16RIA

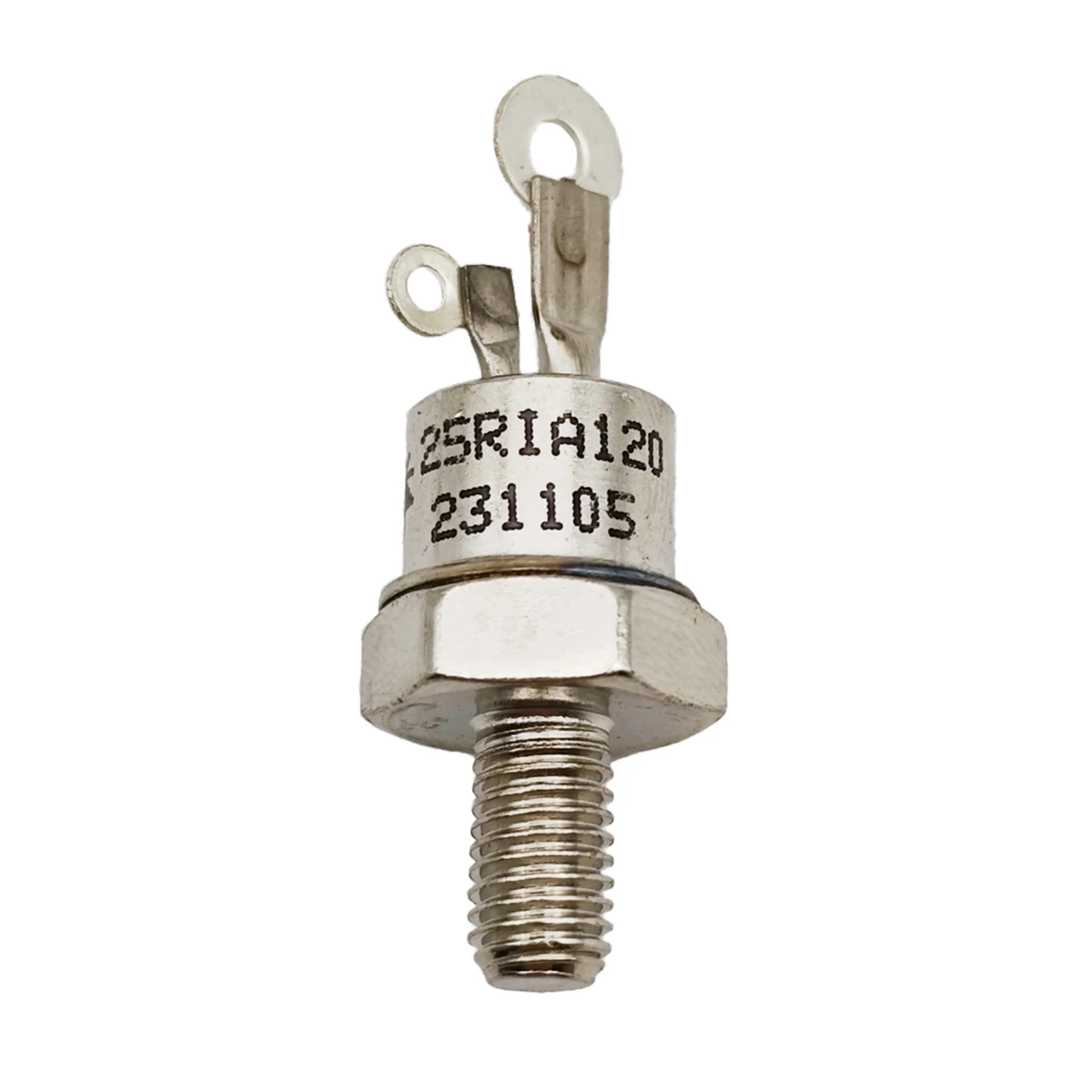

25RIA 120, 1200V 25A, TO48-25RIA

Package Included:
1 x stud diode rectifier

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
